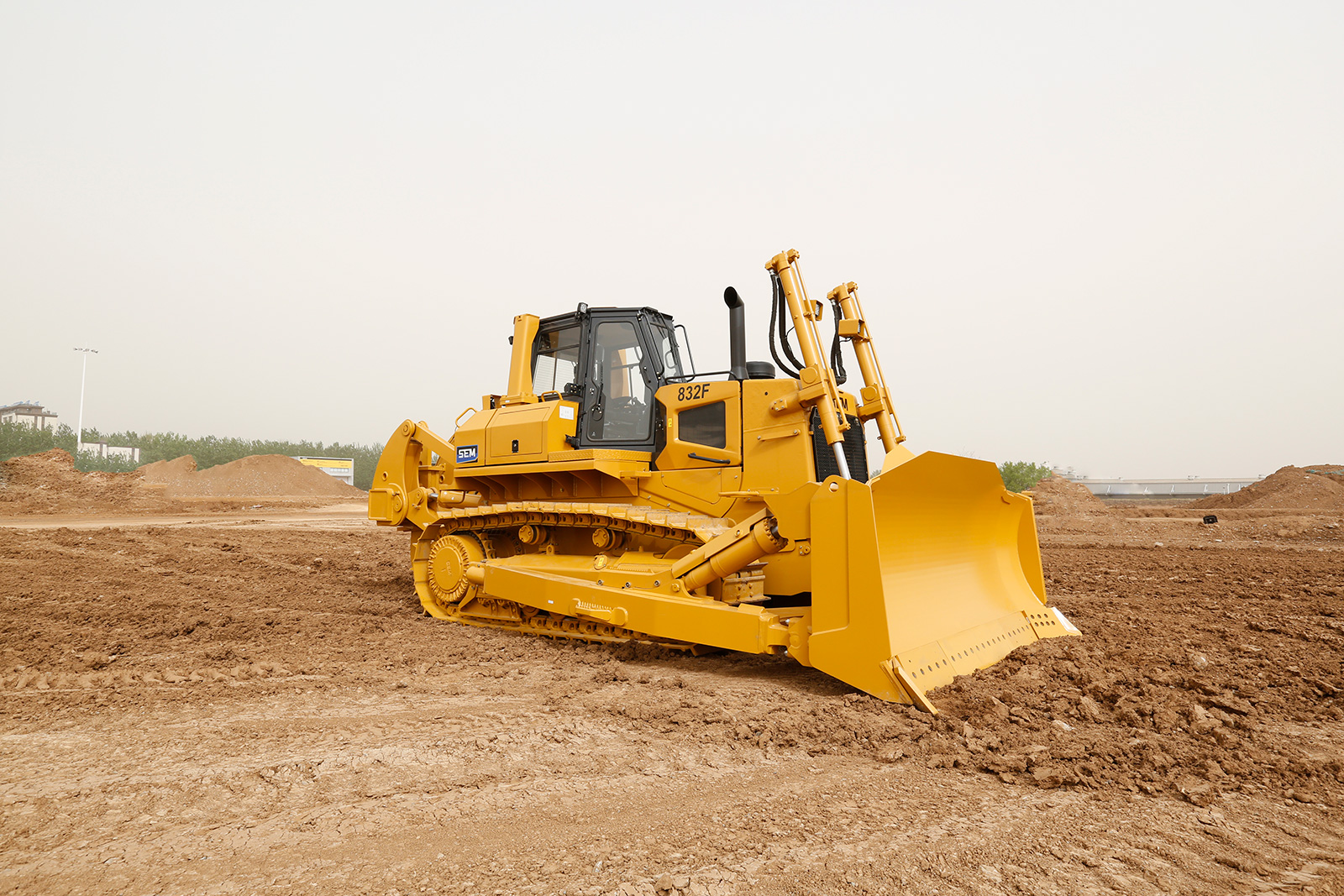

SEM832F is a track-type tractor designed for productive dozing, grading, ripping and material spreading. Powered by Perkins 1706D-E93TA; 253 kW / 339 hp at 2,200 rpm, it combines an electronically controlled hydrostatic transmission and application-specific configurations for dependable performance across operating weights of 38,710-40,110 kg, depending on configuration, with SU blade and ripper.
SEM832F combines hydrostatic control, durable structures and application-specific configurations for productive dozing and material spreading.
SEM832F combines matched machine systems to support productive performance throughout the working cycle.
Straightforward controls, good visibility and an operator-focused environment help reduce effort during long working shifts.
Proven components, reinforced structures and application-focused protection support dependable SEM832F performance in demanding conditions.
Each side uses an electronically controlled dual-path hydrostatic drive with a single pump and dual motors from a world-class supplier. The Perkins engine is positioned as a proven, durable and dependable industrial power source. The triple-stage final drive uses four planetary gears to extend service life.
The Caterpillar-proven hydrostatic transmission load-sensing system is presented as more productive than powershift designs. Infinitely variable speed, counter rotation and power turning improve operational efficiency. A double-pump confluence hydraulic system and quick-drop valve shorten cycle time while reducing fuel use.
The roomy cab and fabric-covered seat provide comfort and broad visibility. A multifunction joystick supports precise control and maneuverability. The machine uses the new F-series styling.
Combining the hydrostatic and hydraulic oil tanks extends maintenance intervals and reduces maintenance cost. Electric Pressure Override (EPOR) prevents high-pressure overflow and reduces heat load.
Lifetime-lubricated, maintenance-free idlers and track/carrier rollers simplify servicing. The implement distribution valve and pressure-test port sit outside the hydraulic oil tank for easier access and shorter maintenance time. Engine and hydrostatic-system diagnostic codes support rapid troubleshooting.
SEM832F supports dozing, grading, ripping and material-spreading work across construction, mining and industrial applications.
Select a specification group to review the machine data most relevant to your application.
| Operating weight with SU blade and ripper | STD: 38,710 kg | DS: 39,390 kg | CH: 39,455 kg | WH: 40,110 kg |
| Ground pressure, GB/T 30965 | STD: 83 / 77 kPa | DS: 63 kPa | CH: 78 kPa | WH: 64 kPa |
| Model | 832F |
| Minimum ground clearance, excluding grouser height | 370 mm |
| Gradeability | 30° |

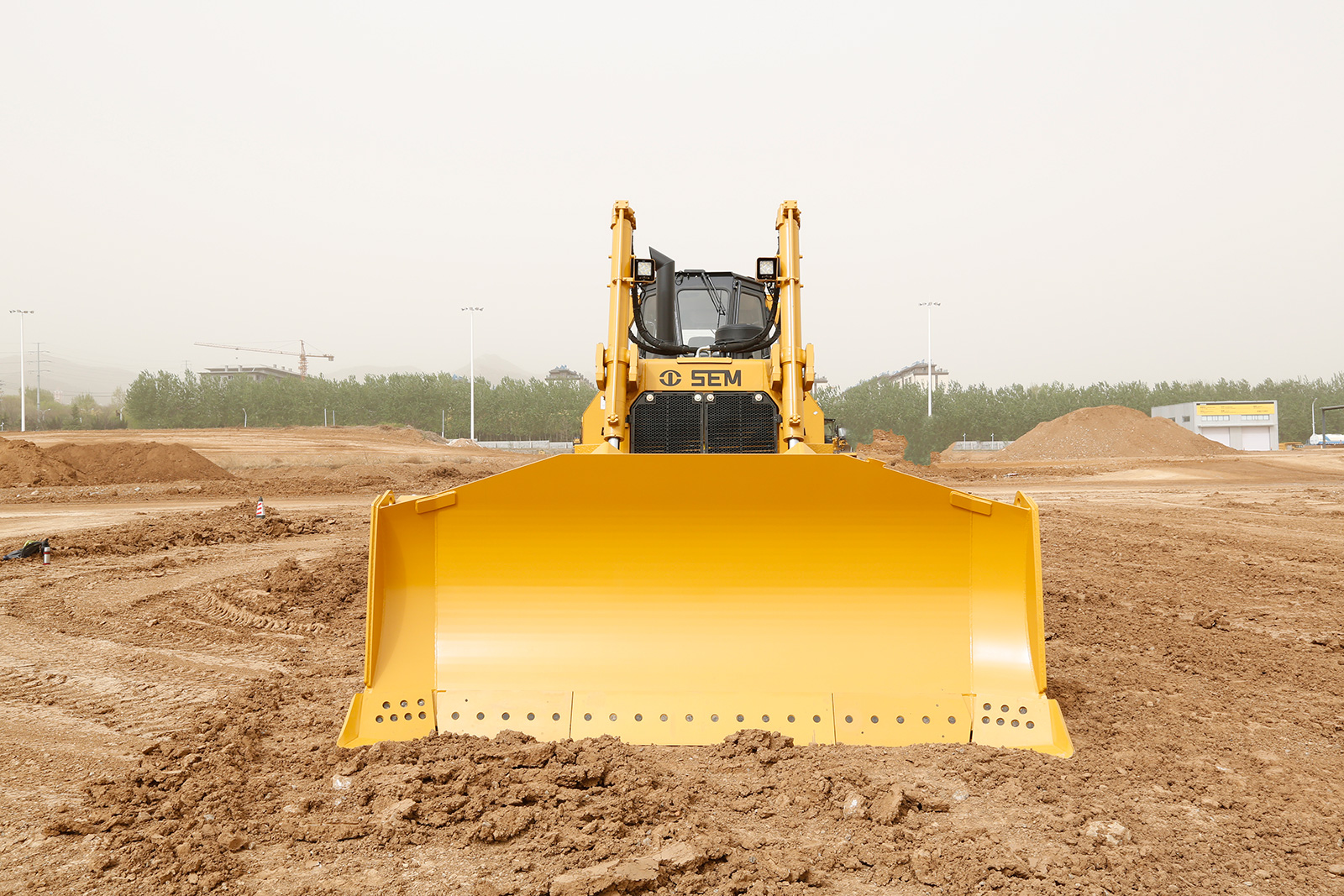

| Blade type | STD: SU | DS: S | CH: Coal | WH: S-WH |
| Capacity, ISO 9246 | STD: 9.6 m³ | DS: 7.8 m³ | CH: 12.9 m³ | WH: 18.6 m³ |
| Width with end bit | STD: 4,180 mm | DS: 4,290 mm | CH: 4,760 mm | WH: 4,335 mm |
| Height | STD: 1,710 mm | DS: 1,590 mm | CH: 1,710 mm | WH: 2,350 mm |
| Tilt height, middle hole | STD: 905 mm | DS: 930 mm | CH: 1,030 mm | WH: 945 mm |
| Weight without push arm | STD: 3,020 kg | DS: 2,840 kg | CH: 3,550 kg | WH: 3,300 kg |
| Minimum turning radius | STD: 4,590 mm | DS: 4,475 mm | CH: 4,990 mm | WH: 4,485 mm |
| Blade lifting height | 1,206 mm |
| Blade digging depth | 558 mm |
| Track-shoe width | STD: 560 / 610 mm | DS: 760 mm | CH: 610 mm | WH: 760 mm |
| Track shoes, each side | 41 |
| Track rollers, each side | 7 |
| Carrier rollers, each side | 2 |
| Engine model | 1706D-E93TA |
| Advertised power, ISO 14396 | 253 kW / 339 hp |
| Rated speed | 2,200 rpm |
| Transmission type | Dual-path, closed-loop, electronically controlled hydrostatic drive system |
| Travel speeds, forward and reverse | Infinitely variable, 0-11 km/h |
| Steering and brake | Hydrostatic steering; wet multi-disc brake; Belleville-spring actuated and hydraulically released |
| Type | Double-pump confluence, pilot control |
| System pressure | 20 MPa |
| Pump type | Gear pump |

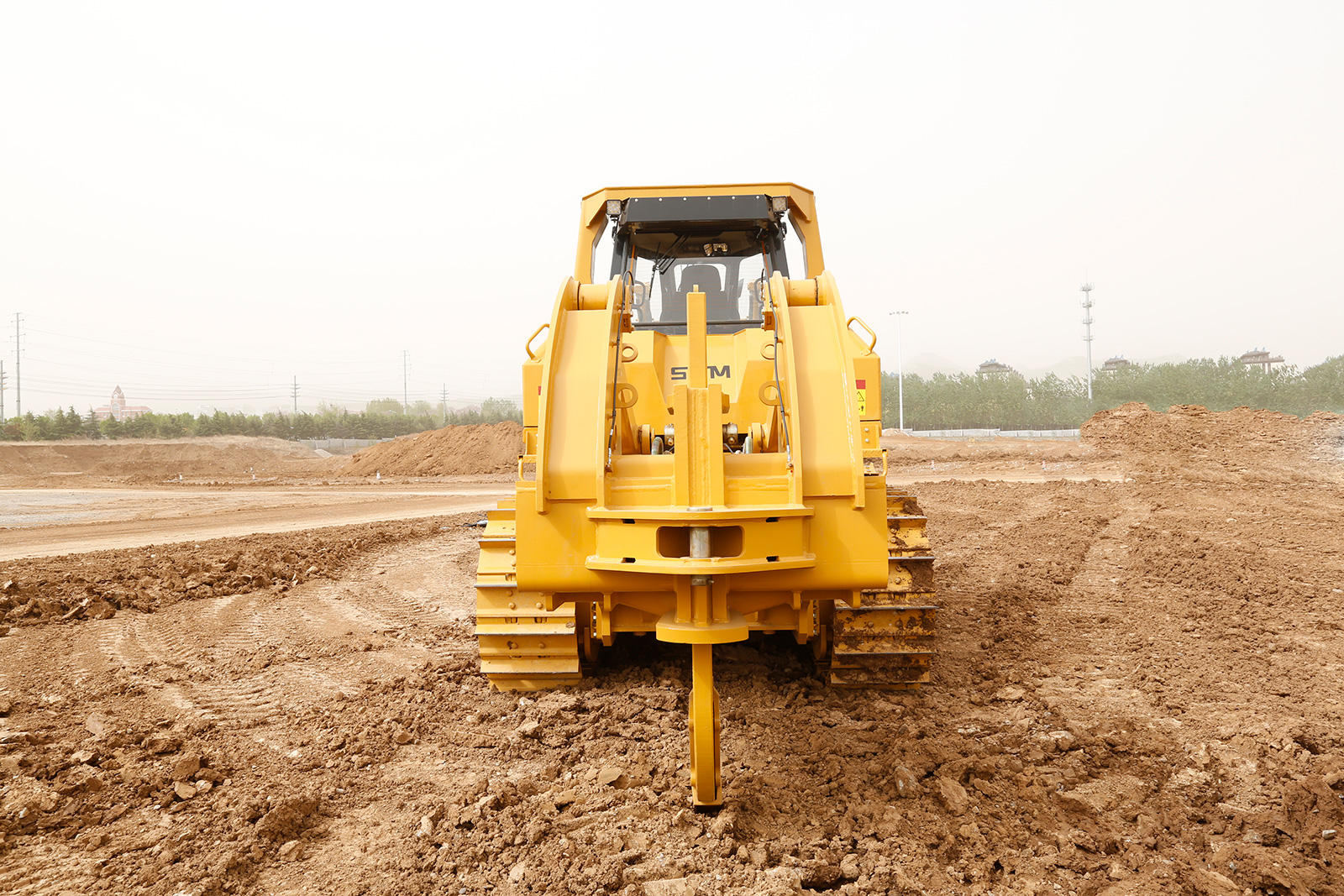

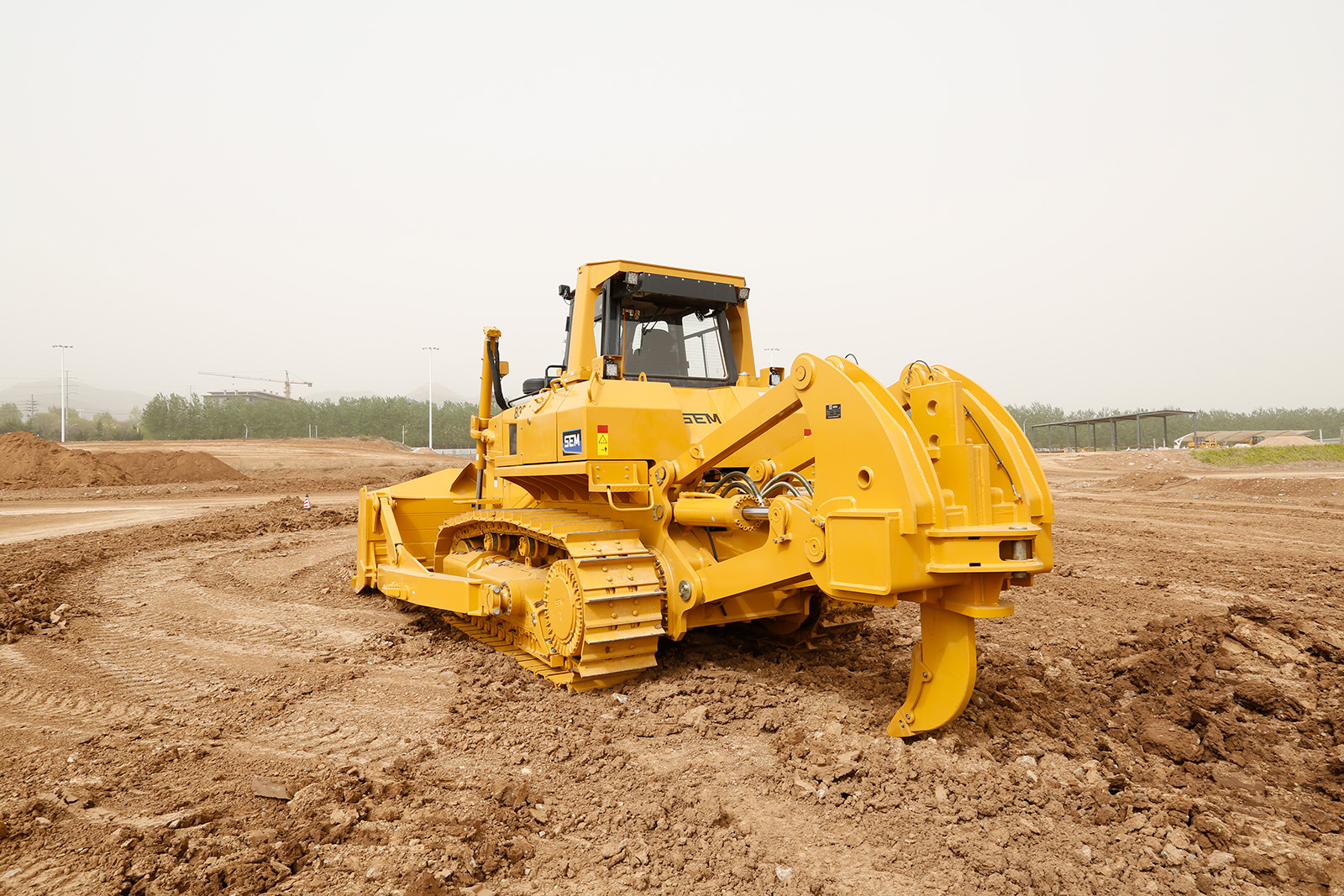

| Type | Parallelogram, no pitch adjustment |
| Maximum penetration, shank pinned in top hole | 1,216 mm |
| Maximum clearance under tip, shank pinned in bottom hole | 812 mm |
| Ripper weight | 4,160 kg |
SEM832F is available with application-specific track shoes, blades and ripper configurations.
Compare power, operating weight and application configurations across the SEM track-type tractor range.
The SEM 636D delivers high productivity, the best-in-class reliability and durability, excellent fuel economy and outstanding operator comfort combining dependable systems from the Weichai engine and machine structure to efficient hydraulics and advanced cooling systems.
View SEM 363D

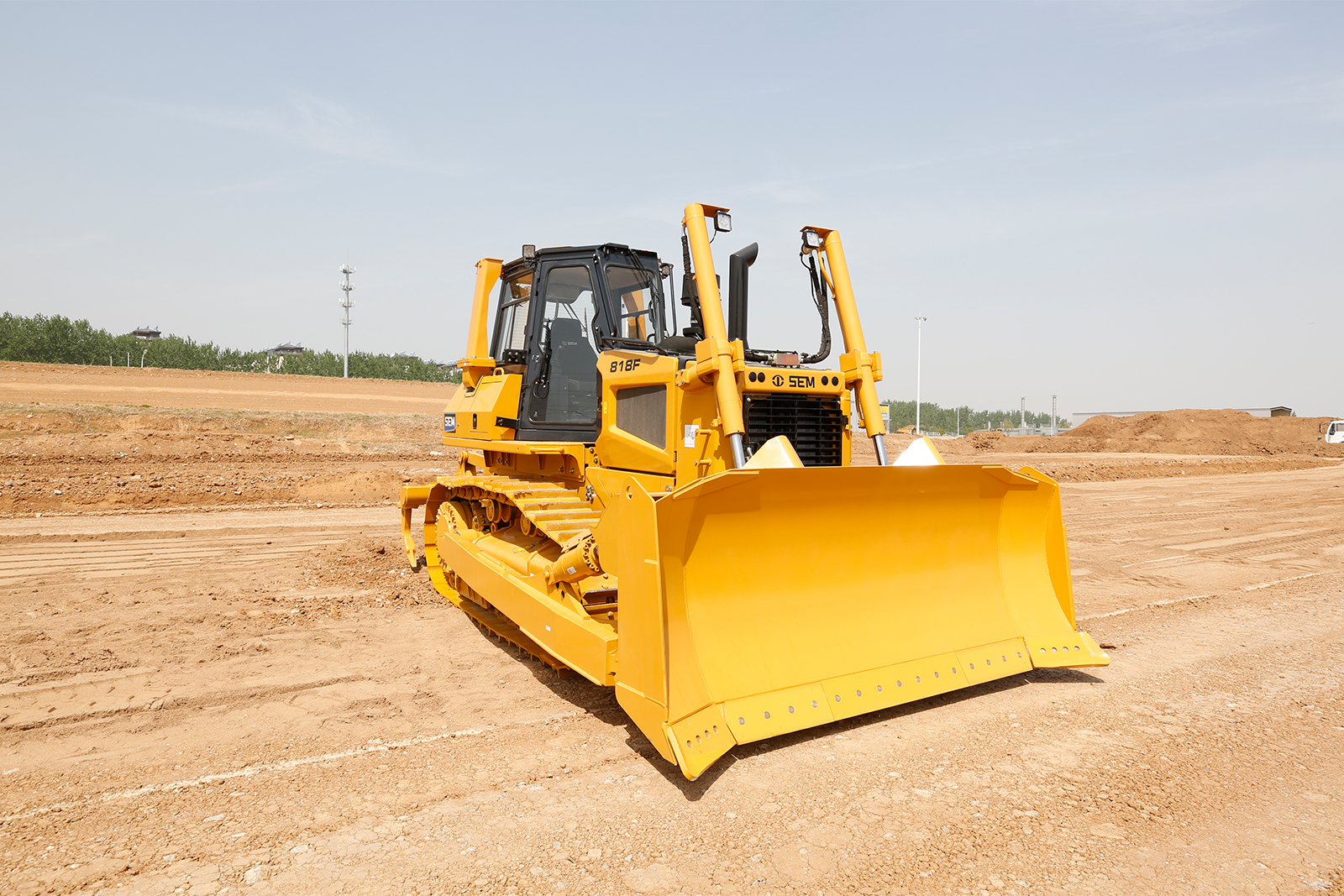

SEM818F is a track-type tractor designed for productive dozing, grading, ripping and material spreading. Powered by Weichai WD10G190E214; 140 kW / 188 hp at 1,900 rpm, it combines an electronically controlled hydrostatic transmission and application-specific configurations for dependable performance across operating weights of 16,950-19,750 kg, depending on configuration.
