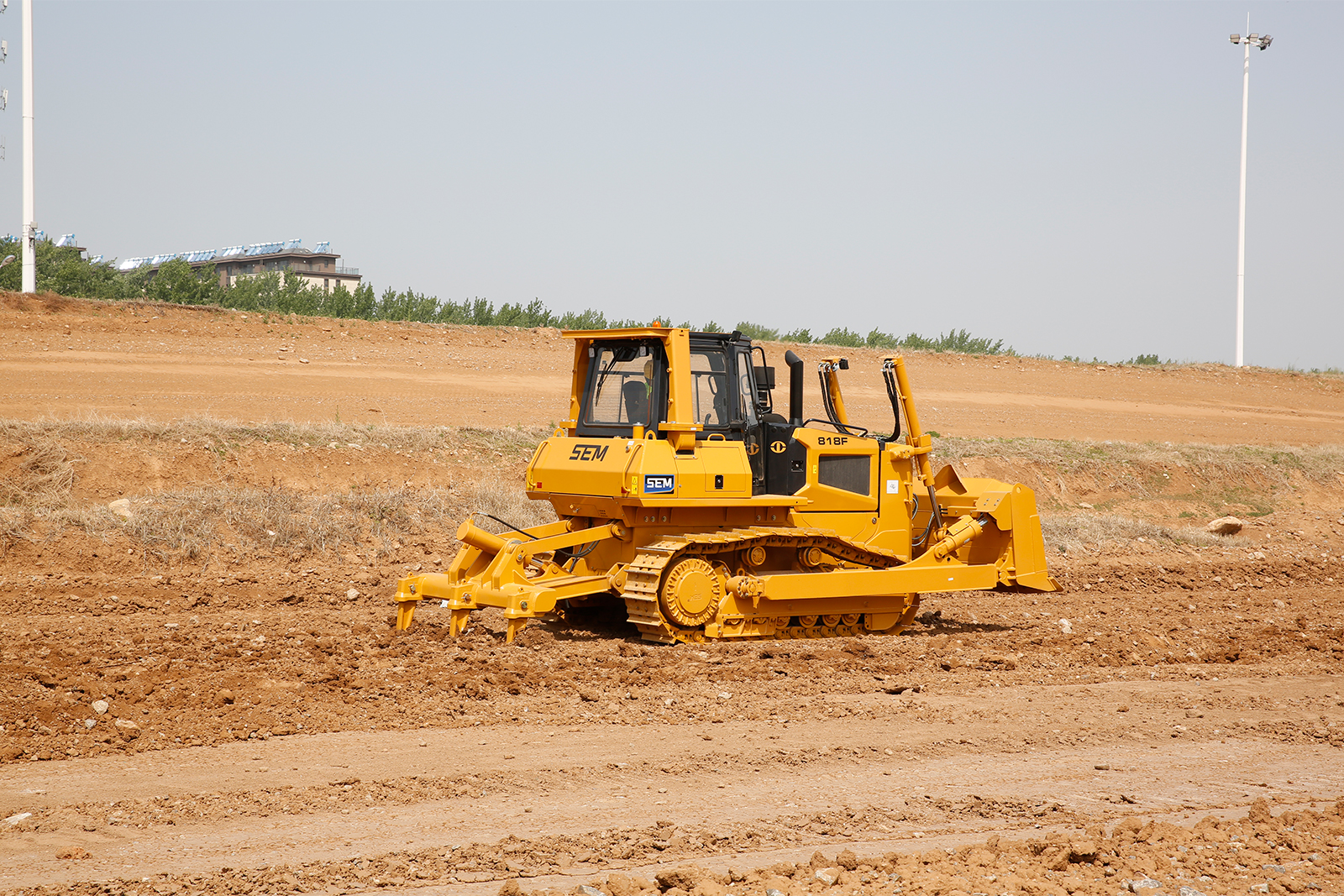

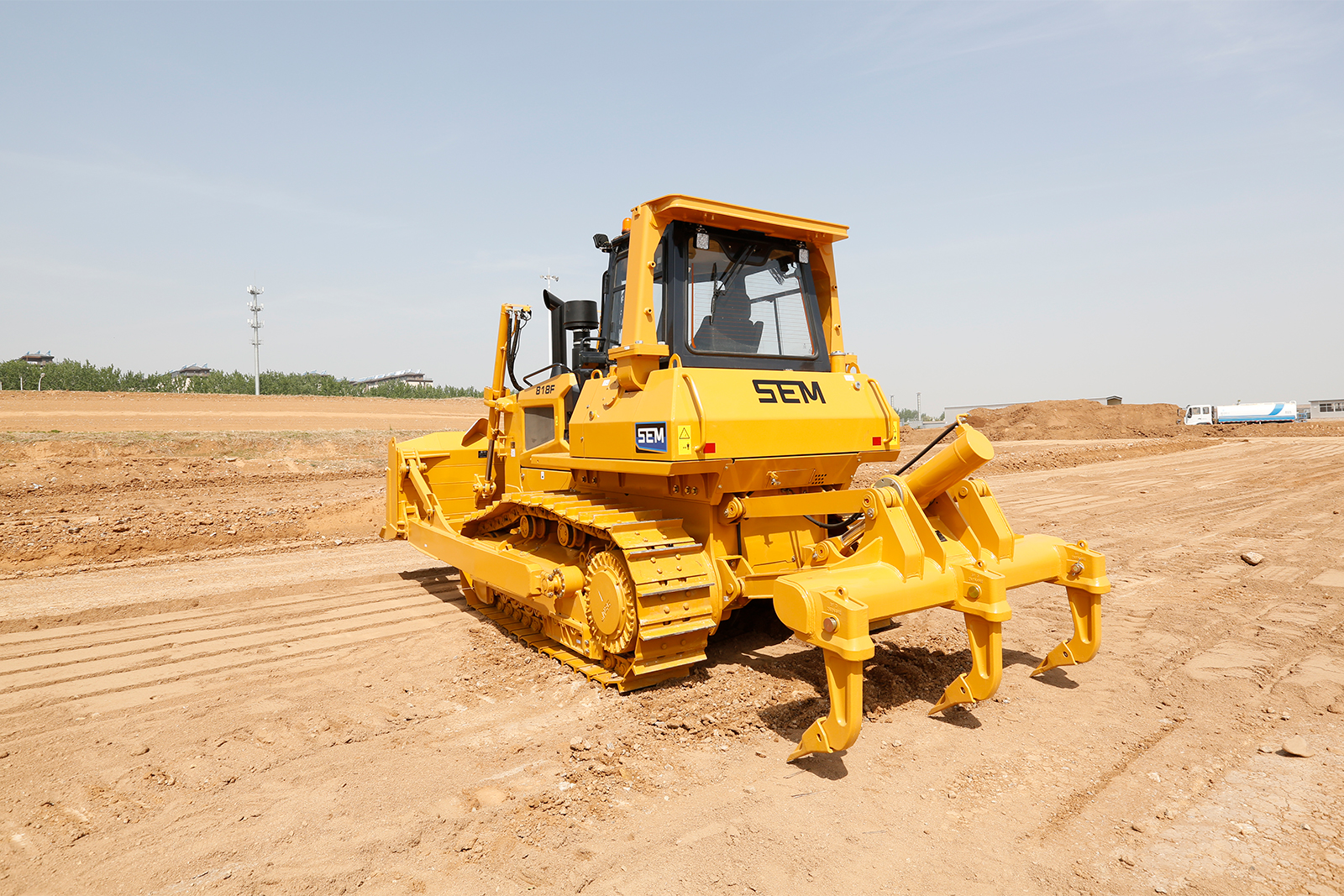

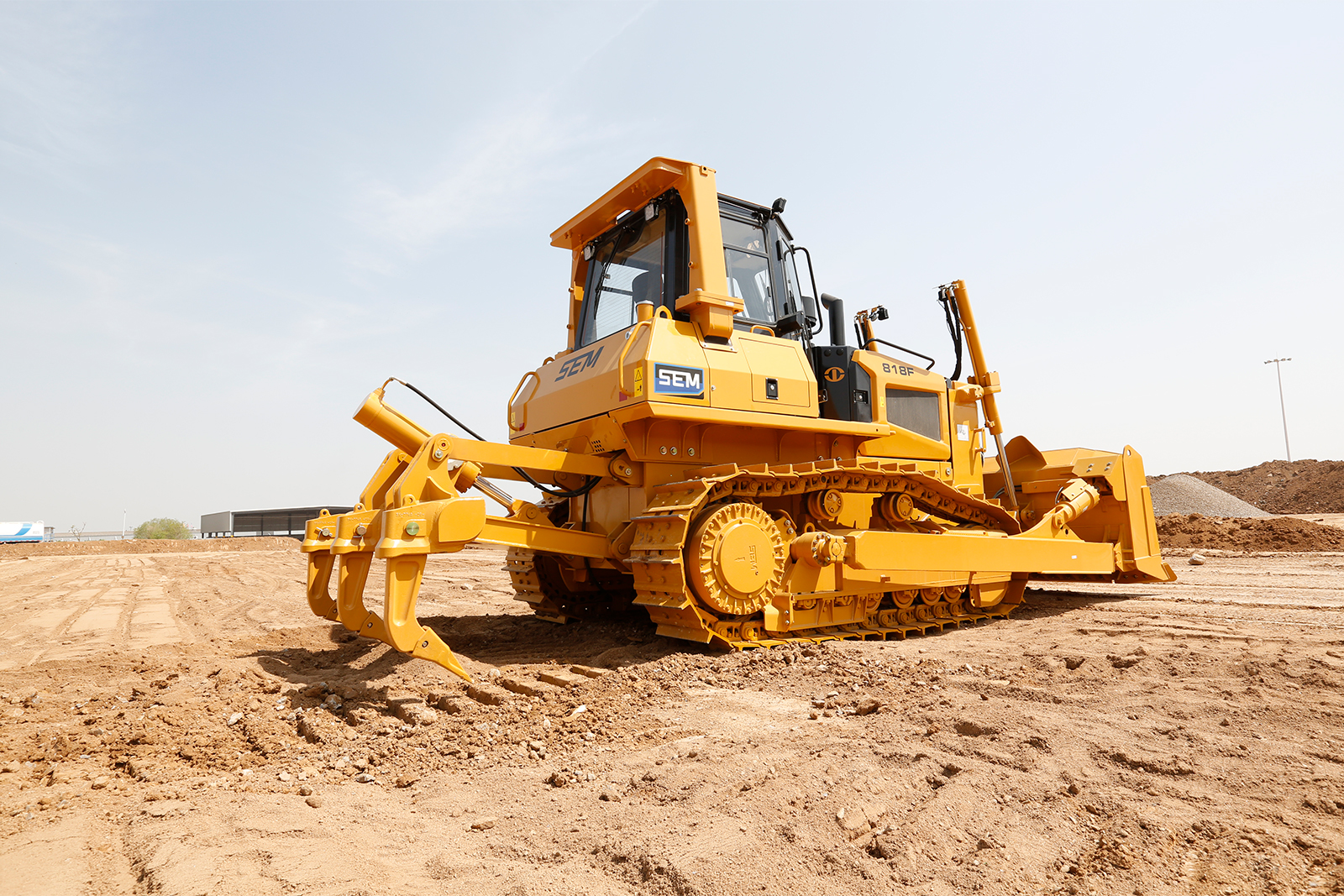

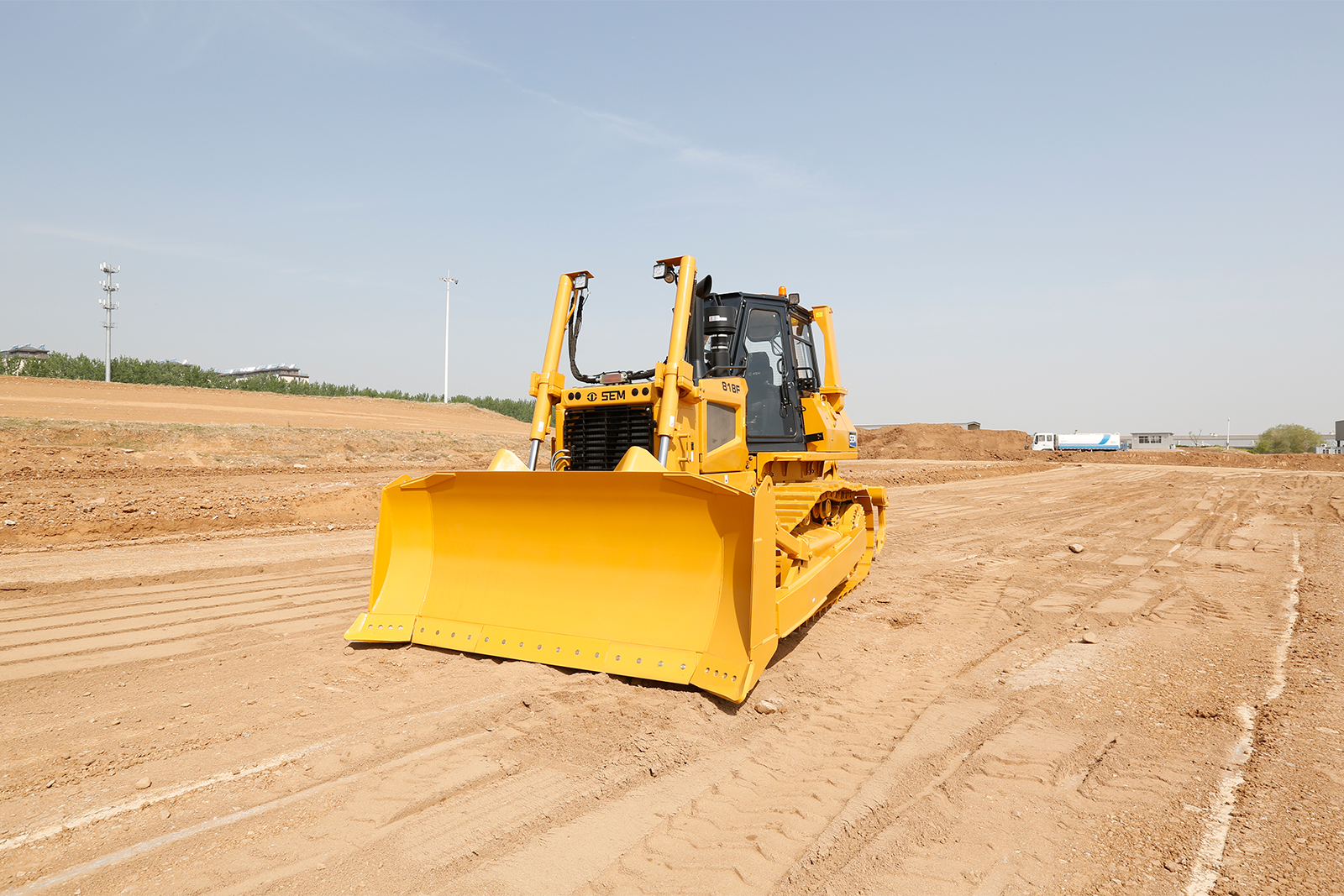

SEM818F is a track-type tractor designed for productive dozing, grading, ripping and material spreading. Powered by Weichai WD10G190E214; 140 kW / 188 hp at 1,900 rpm, it combines an electronically controlled hydrostatic transmission and application-specific configurations for dependable performance across operating weights of 16,950-19,750 kg, depending on configuration.
SEM818F combines hydrostatic control, durable structures and application-specific configurations for productive dozing and material spreading.
SEM818F combines matched machine systems to support productive performance throughout the working cycle.
Straightforward controls, good visibility and an operator-focused environment help reduce effort during long working shifts.
Proven components, reinforced structures and application-focused protection support dependable SEM818F performance in demanding conditions.
A world-class supplier provides the electronically controlled dual-path hydrostatic drive. The mechanically controlled Weichai engine is described as delivering 7% more power with proven durability. The double-stage final drive combines spur gears and a planetary structure for efficient transmission and long life.
The Caterpillar-proven electronic load-sensing system is presented as more productive than powershift designs. Infinitely variable speed, counter rotation and power turning improve operational efficiency. Pilot control for the implement hydraulic system improves comfort and precision.
The roomy cab and fabric-covered seat provide comfort and broad visibility. A single multifunction joystick supports precise control and maneuverability. The machine uses the new F-series styling.
Combining the hydrostatic and hydraulic oil tanks extends maintenance intervals and reduces maintenance cost. Electric Pressure Override (EPOR) prevents high-pressure overflow and reduces heat load.
Lifetime-lubricated, maintenance-free idlers and track/carrier rollers simplify servicing. The implement distribution valve and pressure-test port sit outside the hydraulic oil tank for easier access and shorter maintenance time. Standard display diagnostics for the engine and hydrostatic system support rapid troubleshooting.
SEM818F supports dozing, grading, ripping and material-spreading work across construction, mining and industrial applications.
Select a specification group to review the machine data most relevant to your application.
| Operating weight | STD: 16,950 kg | LGP: 19,355 kg | DS: 19,510 kg | CH: 17,390 kg | WH: 19,750 kg | FR: 18,485 kg |
| Ground pressure | STD: 57 kPa | LGP: 25 kPa | DS: 30 kPa | CH: 53 kPa | WH: 30 kPa | FR: 56 kPa |
| Model | 818F |
| Ground clearance | 400 mm |
| Maximum slope | 30° |
| Blade type | STD: SU / S | LGP: S-LGP | DS: S-LGP | CH: U | WH: S-WH | FR: SU-FR |
| Capacity, ISO 9246 | STD: 4.3 / 3.5 m³ | LGP: 3.24 m³ | DS: 3.24 m³ | CH: 5.6 m³ | WH: 8.2 m³ | FR: 6 m³ |
| Width with end bit | STD: 3,167 / 3,460 mm | LGP: 4,229 mm | DS: 4,229 mm | CH: 3,480 mm | WH: 4,229 mm | FR: 3,167 mm |
| Height | STD: 1,240 / 1,165 mm | LGP: 1,000 mm | DS: 1,000 mm | CH: 1,280 mm | WH: 1,585 mm | FR: 1,605 mm |
| Maximum lift clearance | STD: 1,005 mm | LGP: 1,120 mm | DS: 1,120 mm | CH: 1,005 mm | WH: 1,120 mm | FR: 1,005 mm |
| Maximum digging depth | STD: 415 mm | LGP: 510 mm | DS: 510 mm | CH: 415 mm | WH: 510 mm | FR: 415 mm |
| Tilt height, middle hole | STD: 487 / 539 mm | LGP: 397 mm | DS: 397 mm | CH: 540 mm | WH: 397 mm | FR: 487 mm |
| Weight without push arm | STD: 1,160 / 1,130 kg | LGP: 1,210 kg | DS: 1,210 kg | CH: 1,484 kg | WH: 1,564 kg | FR: 1,279 kg |
| Minimum turning radius | STD: 3,700 mm | LGP: 3,860 mm | DS: 3,860 mm | CH: 3,954 mm | WH: 3,860 mm | FR: 3,700 mm |
| Track-shoe width | STD: 510 mm | LGP: 1,100 mm | DS: 950 mm | CH: 560 mm | WH: 950 mm | FR: 560 mm |
| Track shoes, each side | STD: 37 | LGP: 42 | DS: 42 | CH: 37 | WH: 42 | FR: 37 |
| Track rollers, each side | STD: 6 | LGP: 7 | DS: 7 | CH: 6 | WH: 7 | FR: 6 |
| Carrier rollers, each side | 2 |
| Type | STD: Parallelogram, no pitch adjustment | LGP: / | DS: / | CH: Parallelogram, no pitch adjustment | WH: / | FR: Parallelogram, no pitch adjustment |
| Maximum penetration, top hole | STD: 590 mm | LGP: / | DS: / | CH: 590 mm | WH: / | FR: 590 mm |
| Maximum clearance under tip, bottom hole | STD: 590 mm | LGP: / | DS: / | CH: 590 mm | WH: / | FR: 590 mm |
| Weight | STD: 1,434 kg | LGP: / | DS: / | CH: 1,434 kg | WH: / | FR: 1,434 kg |
| Engine model | WD10G190E214 |
| Gross power, ISO 14396 | 140 kW / 188 hp |
| Rated speed | 1,900 rpm |
| Transmission type | Dual-path, closed-loop, electronically controlled hydrostatic drive system |
| Travel speed, forward | Infinitely variable, 0-8 km/h |
| Travel speed, reverse | Infinitely variable, 0-10 km/h |
| Steering and brake | Hydrostatic steering; wet multi-disc brake; Belleville-spring actuated and hydraulically released |
| Type | Gear pump, pilot control |
| Implement hydraulic-system pressure | 19 MPa |
SEM818F is available with application-specific track shoes, blades and ripper configurations.
Compare power, operating weight and application configurations across the SEM track-type tractor range.
The SEM 636D delivers high productivity, the best-in-class reliability and durability, excellent fuel economy and outstanding operator comfort combining dependable systems from the Weichai engine and machine structure to efficient hydraulics and advanced cooling systems.
View SEM 363D

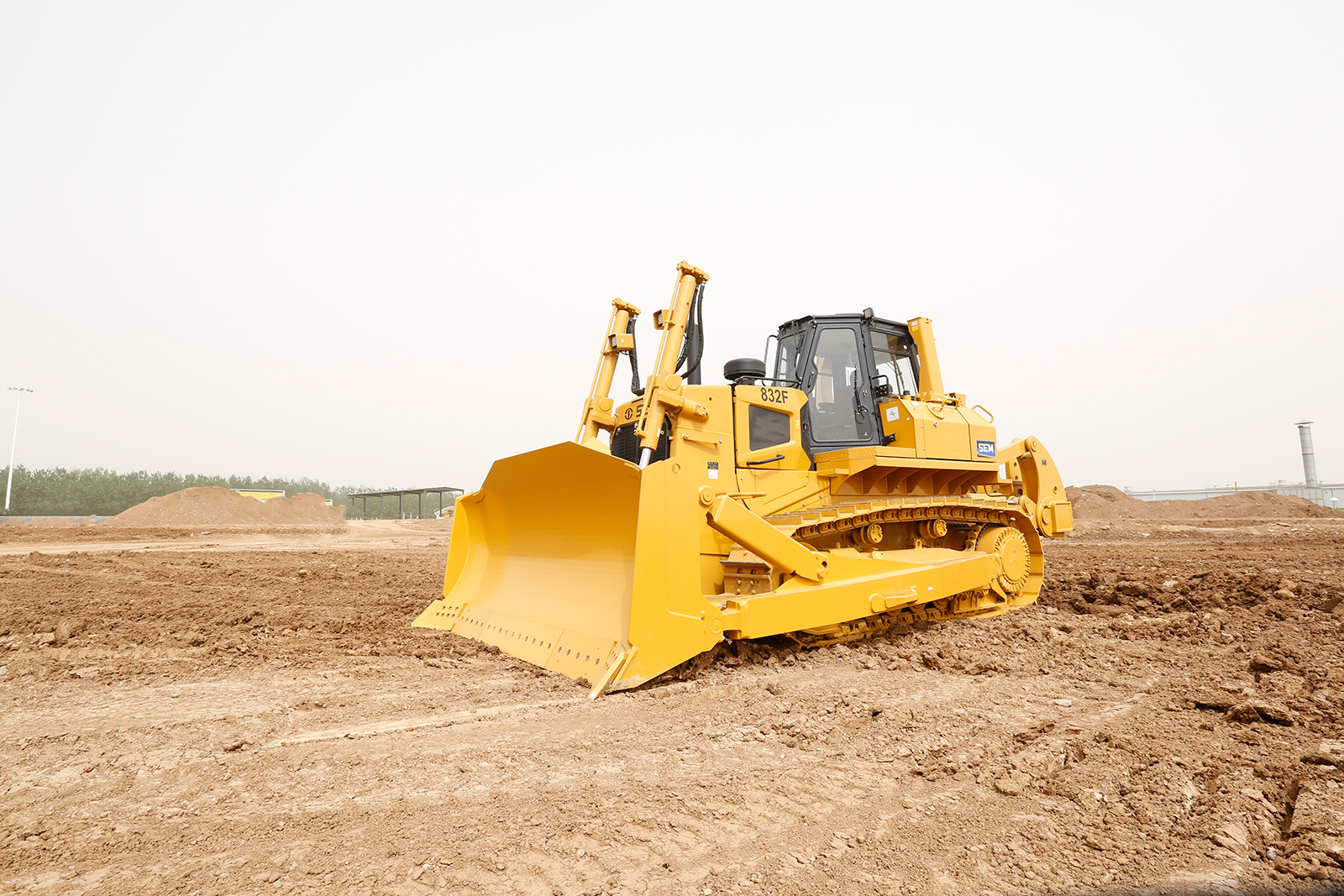

SEM832F is a track-type tractor designed for productive dozing, grading, ripping and material spreading. Powered by Perkins 1706D-E93TA; 253 kW / 339 hp at 2,200 rpm, it combines an electronically controlled hydrostatic transmission and application-specific configurations for dependable performance across operating weights of 38,710-40,110 kg, depending on configuration, with SU blade and ripper.
