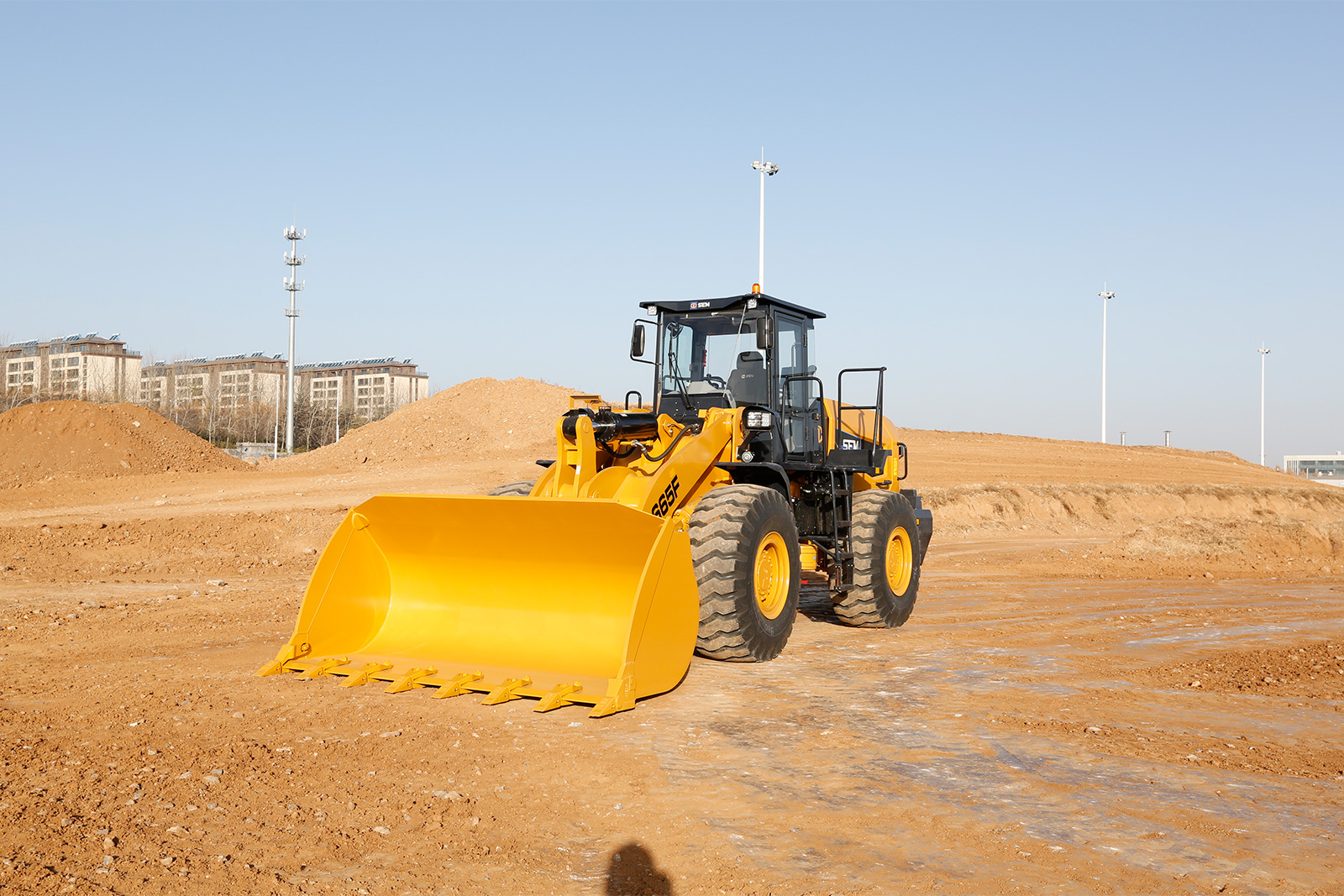

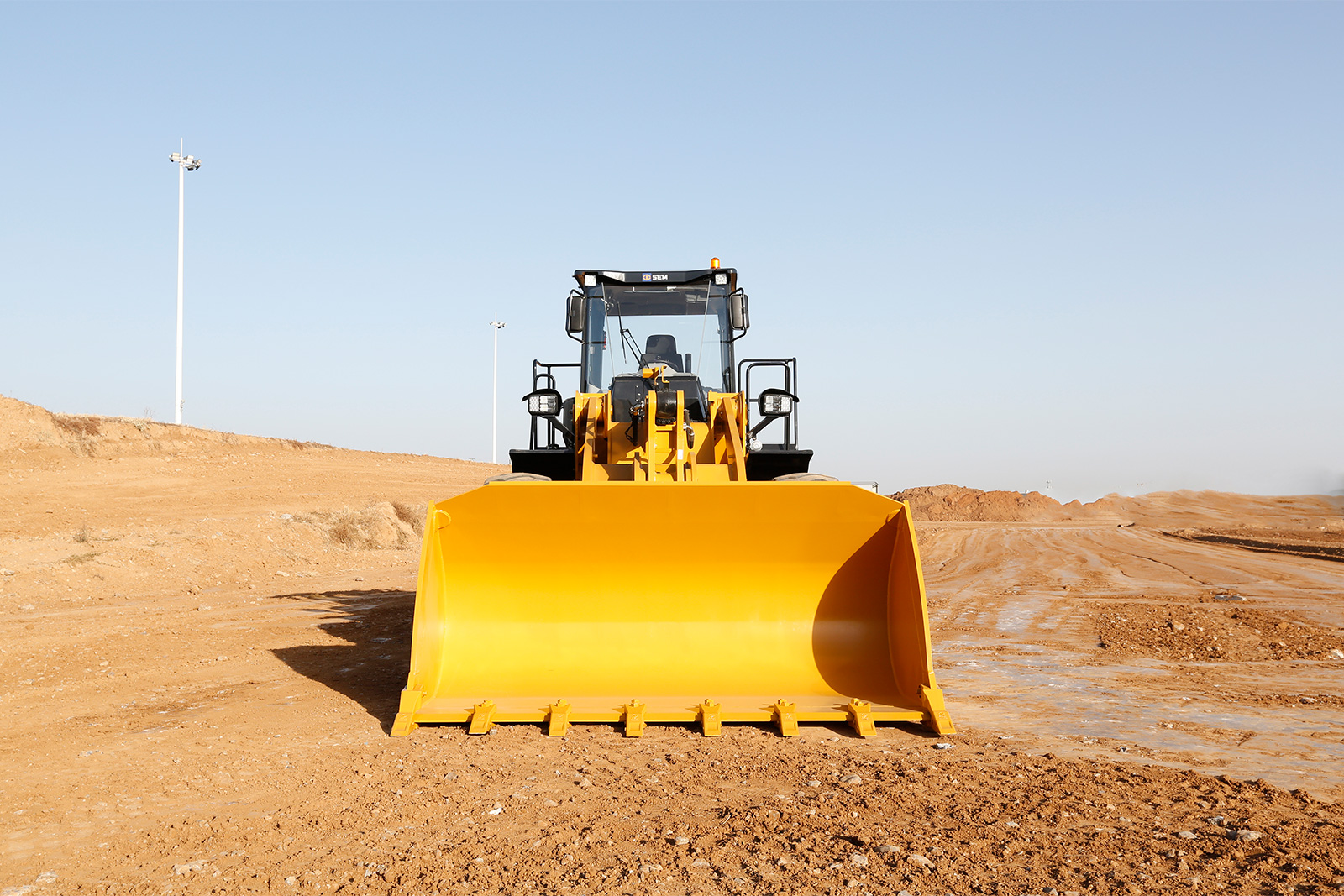

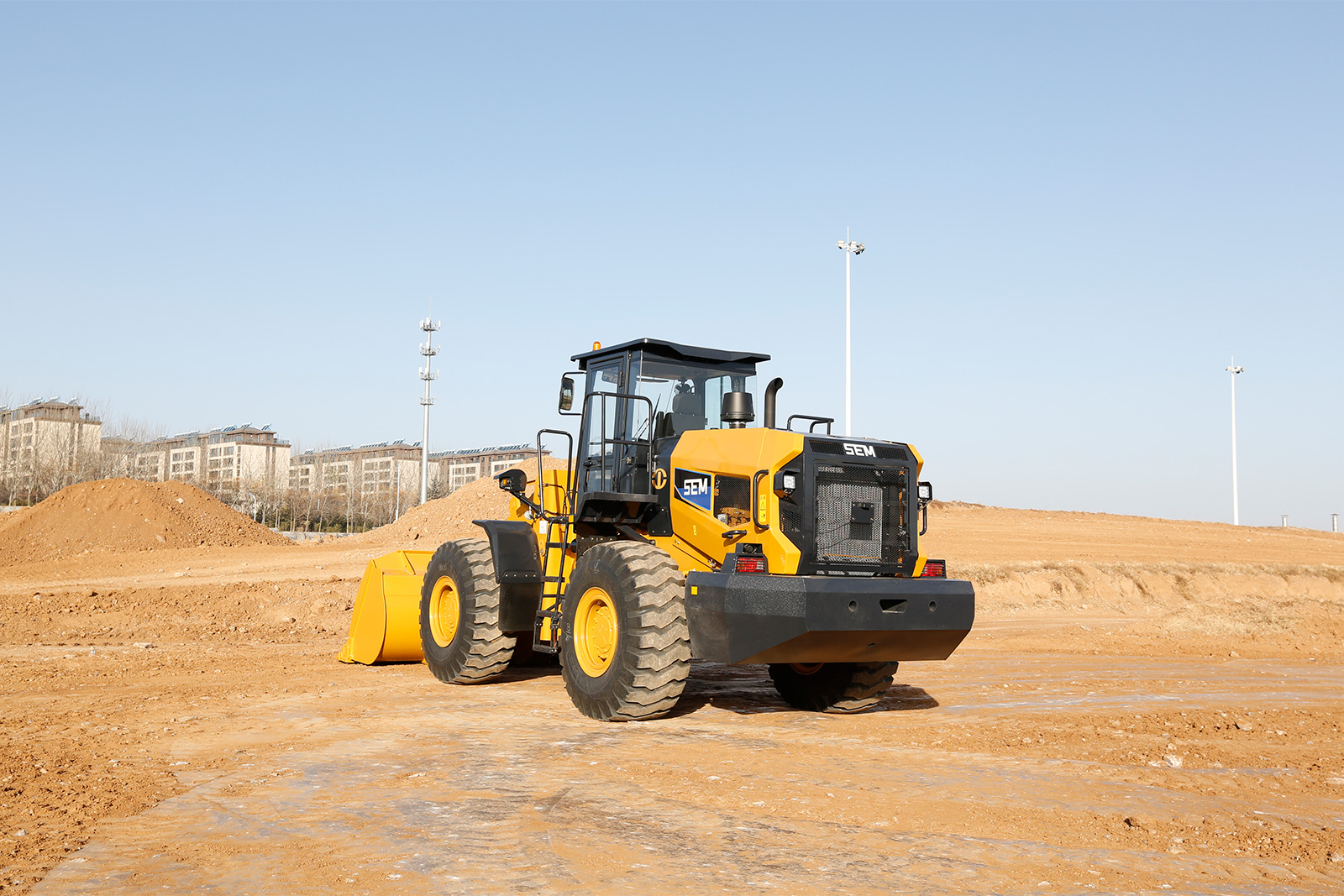

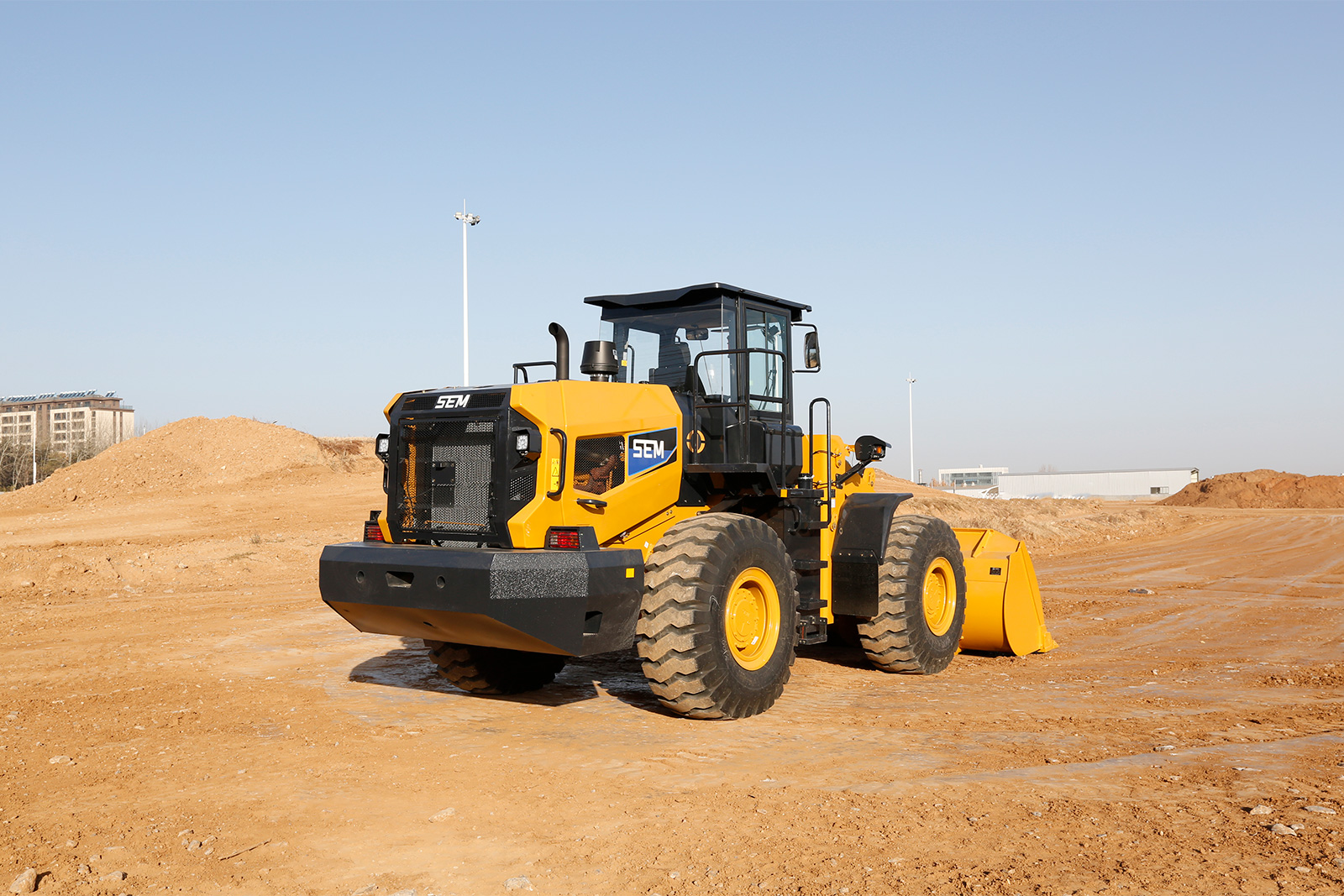

SEM665F is a wheel loader designed for productive material handling with a rated load of 6,500 kg with standard linkage and bucket capacities of 2.9-5.5 m³. Its matched powertrain, efficient hydraulics and durable structures support dependable operation in demanding applications.
SEM665F combines matched powertrain performance, efficient hydraulics and durable structures for productive material handling.
smooth and efficient
The extended 3.4 m wheelbase and optimized axle raise stability, tipping load, and rated load to 6.5 tonnes. The performance-series bucket is stated to carry 10% more material and enter stockpiles more easily. A single-load-sensing hydraulic system provides a 9.8 s cycle time and delivers flow and pressure when required.
A customized 2,000 rpm Weichai WD10G240 engine is matched to the machine systems for strong power delivery and lower fuel use. Hydraulic pressure rises from 18 MPa to 20 MPa to increase boom lifting force. Breakout force, drawbar force, and boom lift are promoted for demanding jobsites.
SEM TR220 electro-hydraulic countershaft power-shift transmission with F2/R1 gearing. The first forward gear covers most work needs; two-speed automatic shifting reduces repeated gear changes and operator fatigue. Engine-to-transmission matching broadens the efficient operating range and supports fuel economy.
The extended 3.4 m wheelbase and optimized axle raise stability, tipping load, and rated load to 6.5 tonnes. The performance-series bucket is stated to carry 10% more material and enter stockpiles more easily. A single-load-sensing hydraulic system provides a 9.8 s cycle time and delivers flow and pressure when required.
A customized 2,000 rpm Weichai WD10G240 engine is matched to the machine systems for strong power delivery and lower fuel use. Hydraulic pressure rises from 18 MPa to 20 MPa to increase boom lifting force. Breakout force, drawbar force, and boom lift are promoted for demanding jobsites.
The modular cooling system supports strong cooling performance and lower maintenance cost; a high-ambient package is optional. The rear cooling door opens from the back to simplify service access. Fuel-tank effective capacity is 303 L for longer operating endurance.
The integrally molded F-generation cab is 20% wider than the D Series and offers broad visibility. Fresh-air pressurization, automatic temperature control, multiple vents, and enhanced defrosting support cab cleanliness and fast temperature adjustment.…
Secondary braking also serves as the parking brake, with continuously adjustable parking-brake force for emergency situations. A three-stage air-cleaner system is stated to provide high filtration efficiency; the first stage reaches up to 93% filtration and is claimed to reduce early wear by 90%. An oil-bath air cleaner is optional for severe environments and lower maintenance cost.
SEM665F supports loading, stockpiling and material-handling work across construction, quarry, port and industrial applications.
Select a specification group to review the machine data most relevant to your application.
| Rated load | 6,500 kg (standard linkage) |
| Operating weight with standard bucket | 20,500 kg |
| Bucket capacity | 2.9-5.5 m³ |
| Wheelbase | 3,400 mm |
| Overall dimensions | 8,704 x 3,092 x 3,458 mm |
| Maximum drawbar force | 220 kN |
| Breakout force | 188 kN |
| Dump clearance | 3,050 mm |
| B-pin height | 4,196 mm (standard linkage) |
| Transmission type | Electro-hydraulic countershaft power shift |
| Transmission gears | F2/R1 |
| Maker and type | SEM TR220 |
| Forward I | 11.6 km/h |
| Forward II | 38.5 km/h |
| Reverse I | 15.5 km/h |
| Main drive type | Spiral bevel gear, single stage |
| Final-drive reduction type | Planetary type, single stage |
| Rear oscillation | ±11° |
| Engine model | WD10G240 |
| Rated power | 178 kW |
| Rated speed | 2,000 rpm |
| Displacement | 9.7 L |
| Implement system type | Open-center flow sharing |
| Boom raise time | 5.7 s |
| Hydraulic cycle time | 9.8 s |
| System pressure setting | 20 MPa |
| Service brake | Dry and caliper, air-to-oil control |
| Parking brake | Drum/shoe |
| System type | Load sensing |
| Steering pump type | Piston pump |
| System pressure setting | 18 MPa |
| Steering angle (left/right) | 38 ±1° |
| Size | 23.5-25 |
| Type | Bias |
| Ply rating / layer | 20 |
| Tread / textured type | L-3 |
SEM665F combines proven standard systems with work-tool and application options for varied material-handling requirements.
Compare payload, bucket capacity and application options across the SEM wheel loader range.
Engine with thermal energy control technology and larger breakout force ensure higher reliability and efficiency. Full load-sensing steering hydraulic system brings lower fuel consumption and smoother operation. This machine also brings world-class operator comfort, featuring a first class premium seat with adjustable suspension, arm rest and safety belt.
View SEM 618D
SEM655D is a wheel loader designed for productive material handling with a rated load of 5,000 kg for both configurations and bucket capacities of 2.7-4.5 m³ for both configurations. Its 162 kW at 2,000 rpm for both configurations powertrain, efficient hydraulics and durable structures support dependable operation in demanding applications.
