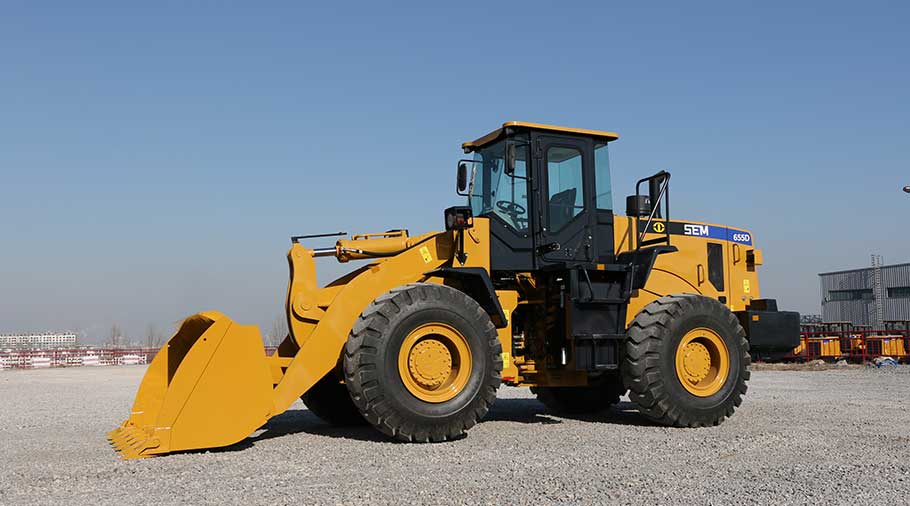

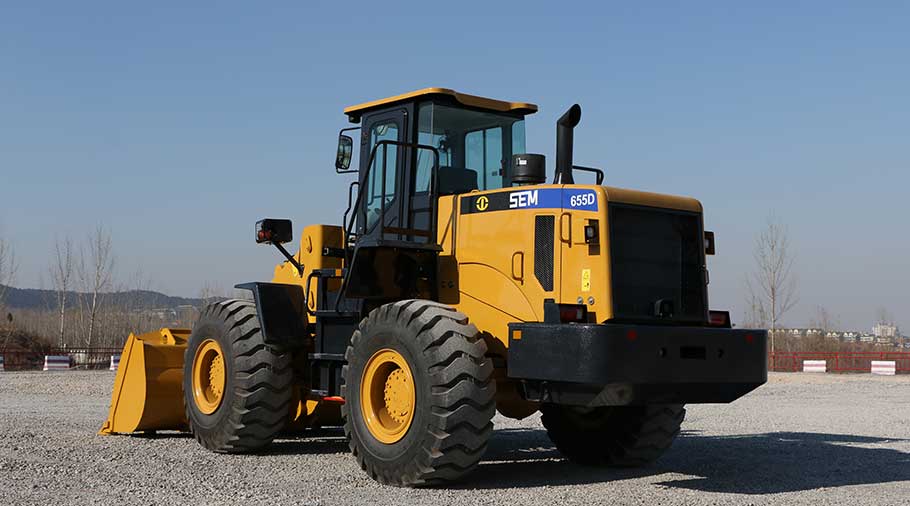

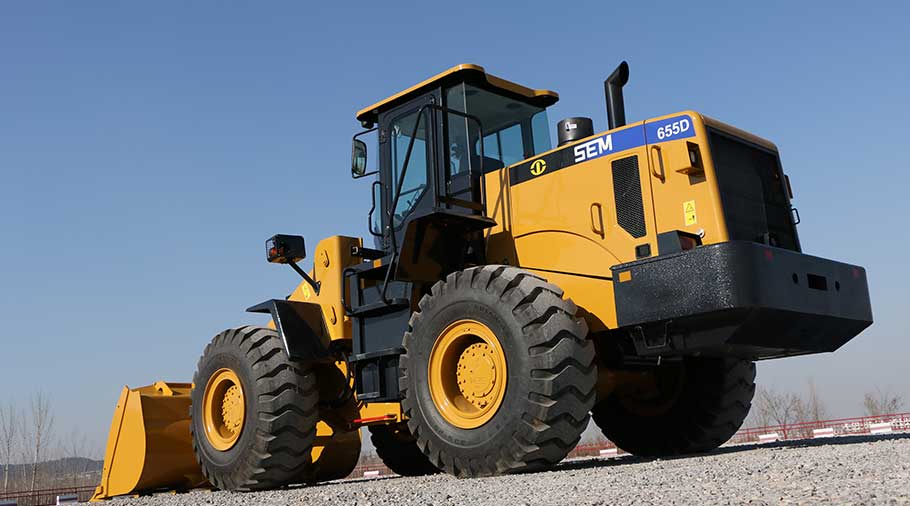

SEM655D is a wheel loader designed for productive material handling with a rated load of 5,000 kg for both configurations and bucket capacities of 2.7-4.5 m³ for both configurations. Its 162 kW at 2,000 rpm for both configurations powertrain, efficient hydraulics and durable structures support dependable operation in demanding applications.
SEM655D combines matched powertrain performance, efficient hydraulics and durable structures for productive material handling.
SEM655D combines matched powertrain and hydraulic performance to support efficient loading cycles and material movement.
Proven components, reinforced structures and application-focused protection support dependable SEM655D performance in demanding conditions.
Matched powertrain and hydraulic systems help SEM655D use power efficiently while supporting lower operating and maintenance costs.
A low-speed engine and electronically controlled fan support operating efficiency. An enhanced fuel pre-filter removes water and contaminants to protect the fuel system. The air cleaner is positioned for dependable operation in severe applications.
Low-speed torque is optimized to support productivity. Strong torque delivery contributes to higher breakout force. the Cummins configuration as offering best-in-class fuel efficiency.
The sturdy machine structure is positioned for high-volume earthmoving. For hopper feeding and coal loading, the page emphasizes loading more, moving faster and consuming less fuel. Multiple work tools extend machine versatility.
Twin-pump flow-merging hydraulics are designed to improve machine efficiency. Hydraulic and drivetrain matching reduces cycle time and supports productivity. Joystick hydraulic control enables easy and precise operation.
The premium cab provides generous space and strong visibility. A patented MAC mounting system is intended to reduce noise and improve comfort. An adjustable suspension seat, sliding side window and fresh-air air conditioning support the operator.
The countershaft transmission uses upgraded core components for reliability. Strong first-gear rim pull and higher second-gear speed support load-and-carry work. A selectable clutch cut-off function supports stable, safe operation.
The standard cooling package is rated for ambient conditions up to 50°C. Shock-pad mounting supports cooling-system reliability in severe applications.
SEM655D supports loading, stockpiling and material-handling work across construction, quarry, port and industrial applications.
Select a specification group to review the machine data most relevant to your application.
| Model | Weichai: SEM 655D - Weichai | Cummins: SEM 655D - Cummins |
| Rated payload | 5,000 kg |
| Operating weight with standard bucket | Weichai: 16,800 kg | Cummins: 16,700 kg |
| Bucket capacity | 2.7-4.5 m³ |
| Breakout force | 168 kN |
| Transmission gears | F4/R4 |
| Torque converter | Single stage, three elements |
| Maker and type | SEM TR200 |
| Rear oscillation | Weichai: ±11° | Cummins: Not separately stated |
| Model | Weichai: Weichai WD10G | Cummins: Cummins 6LT9.3 |
| Rated power | 162 kW |
| Rated speed | 2,000 rpm |
| Displacement | Weichai: 9.726 L | Cummins: 9.242 L |
| System type | Twin-pump flow-merging |
| Hydraulic cycle time | 9.5 s |
| Pressure setting | 17 MPa |
| Raise time | 5.13 s |
| Service brake | Dry caliper, air-to-oil |
| Parking brake | Drum shoe, spring applied / oil released |
| Fuel tank | 260 L |
| Engine lubricating oil | 21 L |
| Hydraulic system | 165 L |
| Transmission oil | 53 L |
| Size | 23.5-25 |
| Type | Bias |
| Ply / layer | 16 |
SEM655D combines proven standard systems with work-tool and application options for varied material-handling requirements.
Compare payload, bucket capacity and application options across the SEM wheel loader range.
Engine with thermal energy control technology and larger breakout force ensure higher reliability and efficiency. Full load-sensing steering hydraulic system brings lower fuel consumption and smoother operation. This machine also brings world-class operator comfort, featuring a first class premium seat with adjustable suspension, arm rest and safety belt.
View SEM 618D

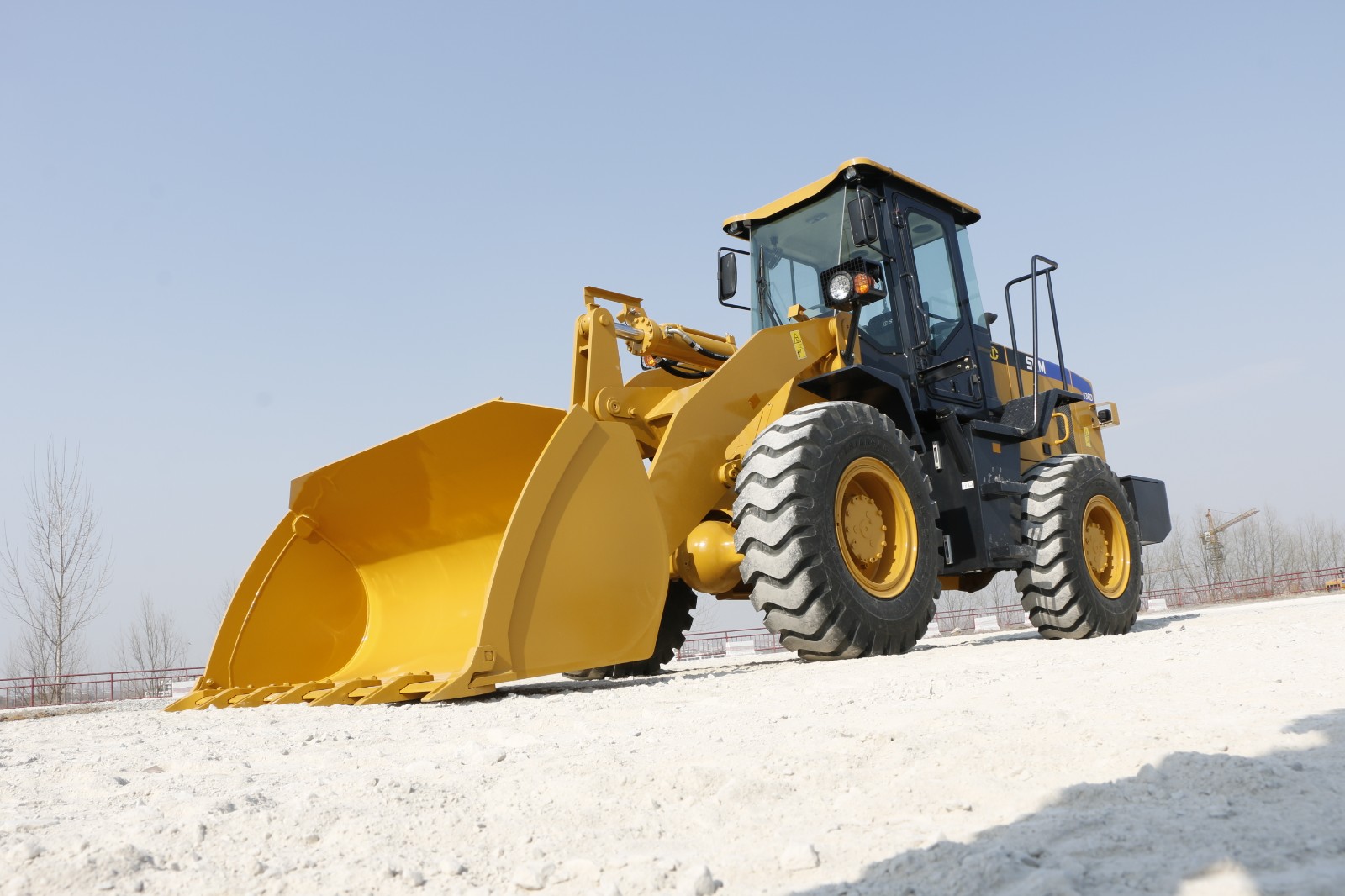

SEM636D is a wheel loader designed for productive material handling with a rated load of 3,000 kg and bucket capacities of 1.5-2.5 m³. Its 92 kW at 2,200 rpm powertrain, efficient hydraulics and durable structures support dependable operation in demanding applications.
