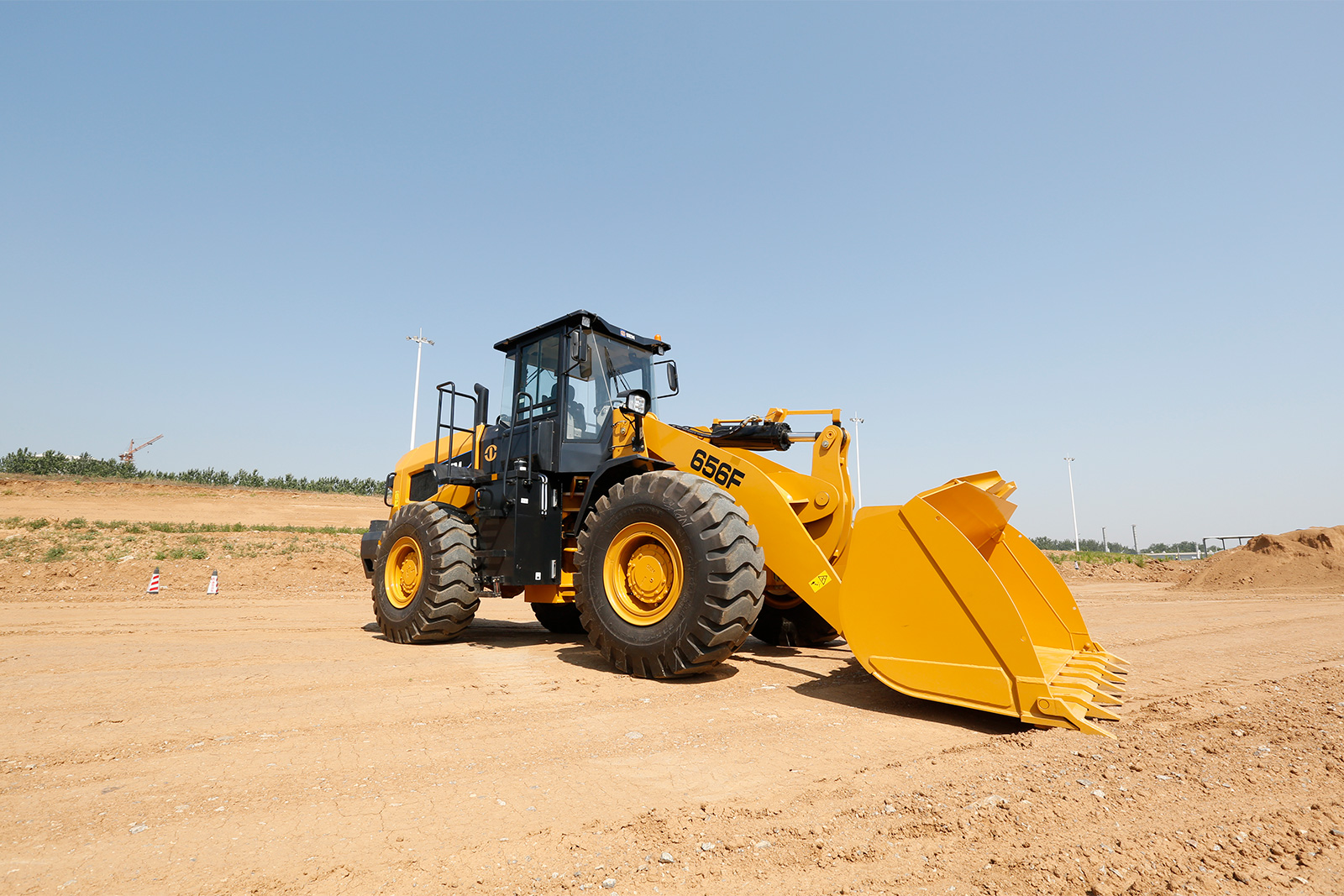

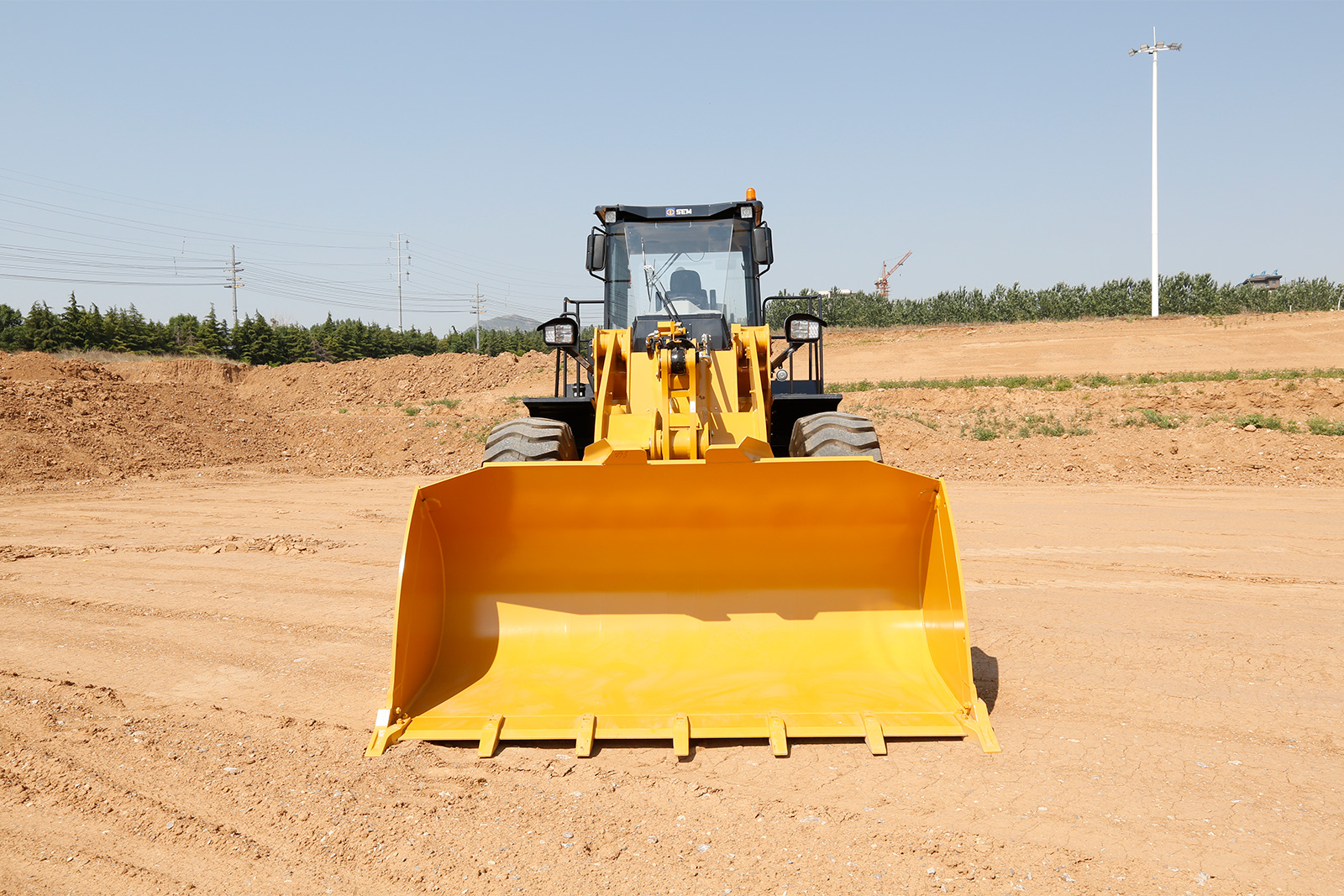

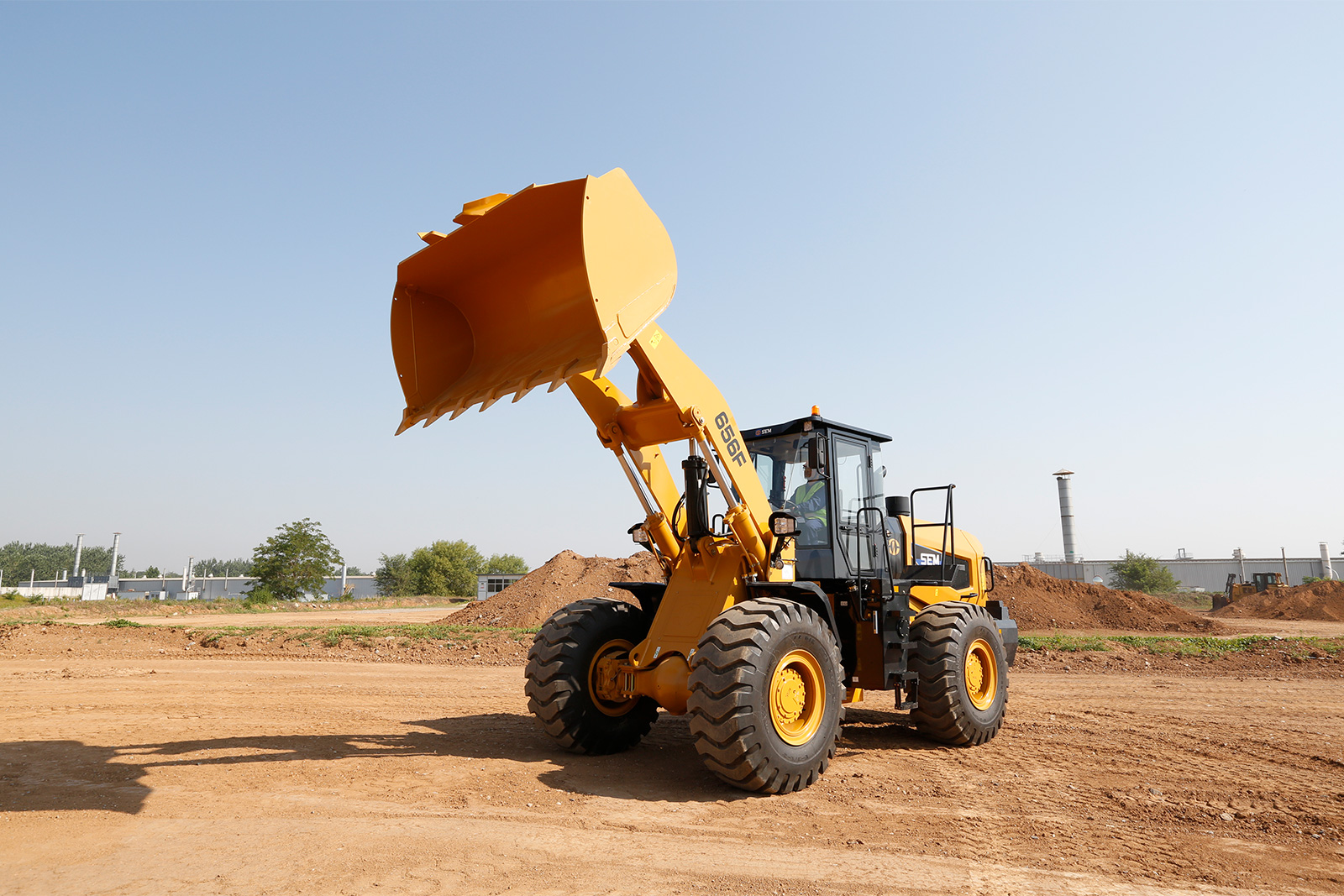

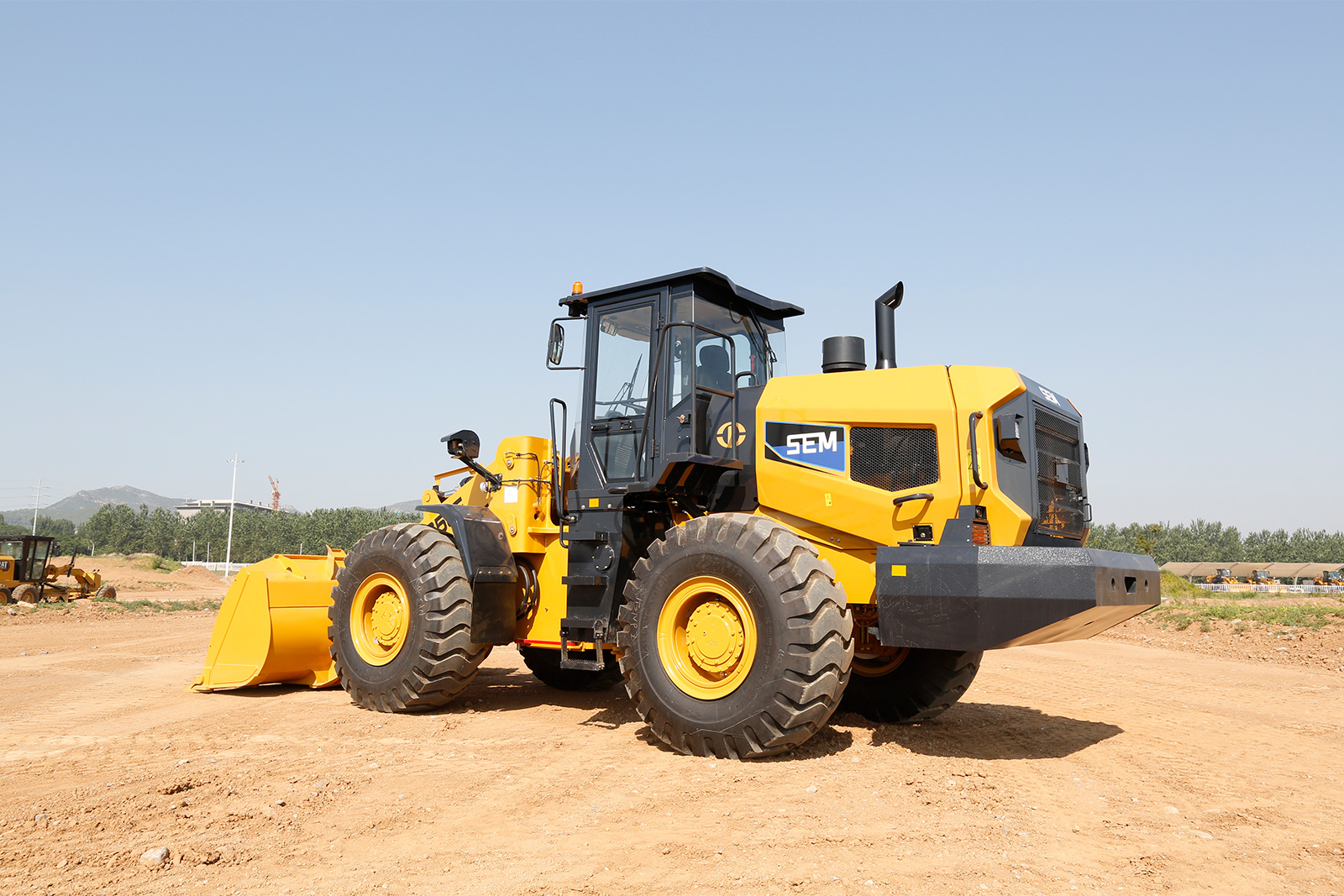

SEM656F is a wheel loader designed for productive material handling with a rated load of 5,500 kg and bucket capacities of 2.6-5.0 m³. Its Weichai WD10G220E23; 162 kW at 2,000 rpm powertrain, efficient hydraulics and durable structures support dependable operation in demanding applications.
SEM656F combines matched powertrain performance, efficient hydraulics and durable structures for productive material handling.
Rated payload increases by 10%, from 5.0 to 5.5 tonnes. The 3,350 mm wheelbase improves machine stability. Pilot control is available through joystick or levers.
SEM656F combines proven SEM systems to support consistent performance in demanding applications.
The F-series appearance was developed by the American CID team to communicate toughness and visual appeal. The engine hood uses high-quality carbon-plate molds for durability and reliability. A gull-wing hood provides generous service and maintenance access.
Rated payload increases by 10%, from 5.0 to 5.5 tonnes. The 3,350 mm wheelbase improves machine stability. Pilot control is available through joystick or levers.
The enlarged cab adds 20% more space and provides 24 V power, a fuel gauge, visor and other operator features. LED beams and work lamps improve lighting for night operations. A protected bucket-leveler layout shields the tilt cylinder and rod from damage.
The F-series appearance was developed by the American CID team to communicate toughness and visual appeal. The engine hood uses high-quality carbon-plate molds for durability and reliability. A gull-wing hood provides generous service and maintenance access.
The articulated-center frame reduces required working space and rear-tire tracking, helping reduce fuel use and tire wear; its bearing arrangement carries radial and axial loads. Dust-protective lubrication caps, double-sealed bucket and lift-arm pins, and lubricated pin passages protect joints in demanding work. A dust-resistant pilot valve and end-face tooth connection improve dependable control and torque transfer.
A larger ground-level bucket rack angle increases material retention. The linkage maintains dump clearance while providing longer reach for one-side truck loading. An Auto-to-Ready function returns the linkage after material is dumped at maximum height.
Grease points are positioned for convenient maintenance. High engine-parts compatibility supports simpler and more economical replacement. A lower cab opening improves service and repair access.
The internal-expanding drum parking brake applies automatically if air pressure drops below the defined level. A slope switch supports safe slope operation while maintaining power output. A certified backup alarm and frame lock bar are provided.
SEM656F supports loading, stockpiling and material-handling work across construction, quarry, port and industrial applications.
Select a specification group to review the machine data most relevant to your application.
| Model | SEM 656F |
| Rated load | 5,500 kg |
| Operating weight with standard bucket | 17,678 kg |
| Bucket capacity | 2.6-5.0 m³ |
| Wheelbase | 3,350 mm |
| Overall dimensions | 8,472 x 3,117 x 3,465 mm |
| Maximum drawbar force | 170 kN |
| Breakout force | 161 kN |
| Dump clearance | 2,991 mm |
| B-pin height | 4,162 mm |
| Transmission type | Countershaft power shift |
| Transmission gears | F4/R4 |
| Torque converter type | Single stage, three elements |
| Forward I / Reverse I | 7.6 / 7.6 km/h |
| Forward II / Reverse II | 14 / 14 km/h |
| Forward III / Reverse III | 22 / 22 km/h |
| Forward IV / Reverse IV | 39 / 39 km/h |
| Maker and type | TR200 |
| Main drive type | Spiral bevel gear, single stage |
| Final-drive reduction type | Planetary type, single stage |
| Rear oscillation | ±11° |
| Engine model | WD10G220E23 |
| Rated power | 162 kW |
| Rated speed | 2,000 rpm |
| Displacement | 9.7 L |
| System type | Open-center flow sharing |
| Boom raise time | 5.13 s |
| Hydraulic cycle time | 9.3 s |
| System pressure setting | 17 MPa |
| Service brake | Dry caliper, air-to-oil control |
| Parking brake | Drum/shoe |
| System type | Load sensing |
| Steering pump type | Gear pump |
| System pressure setting | 16 MPa |
| Steering angle, left/right | 38 ±1° |
| Size | 23.5-25 |
| Type | Bias |
| Ply / layer | 16 |
| Tread / textured type | L-3 |
SEM656F combines proven standard systems with work-tool and application options for varied material-handling requirements.
Compare payload, bucket capacity and application options across the SEM wheel loader range.
Engine with thermal energy control technology and larger breakout force ensure higher reliability and efficiency. Full load-sensing steering hydraulic system brings lower fuel consumption and smoother operation. This machine also brings world-class operator comfort, featuring a first class premium seat with adjustable suspension, arm rest and safety belt.
