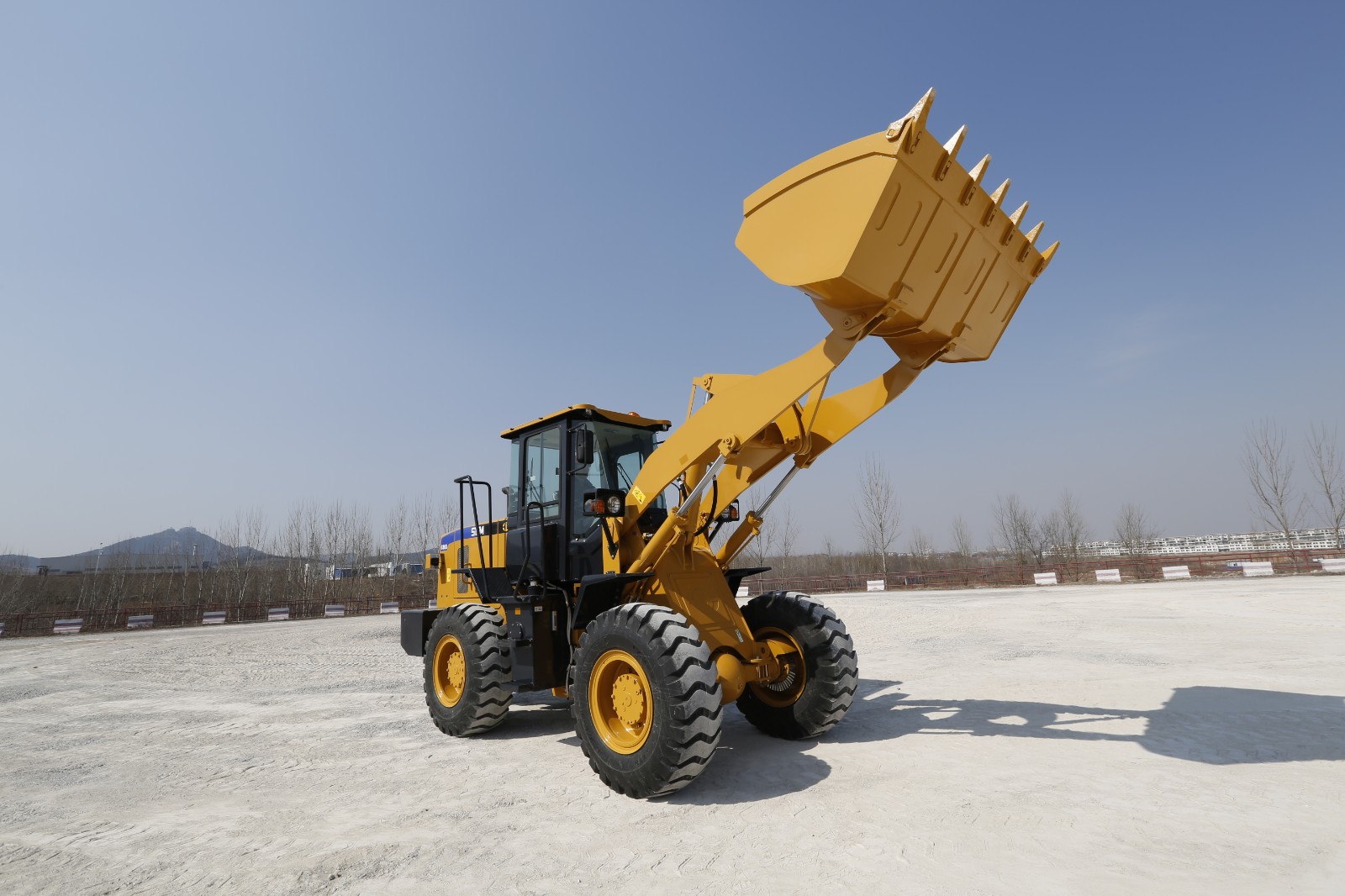

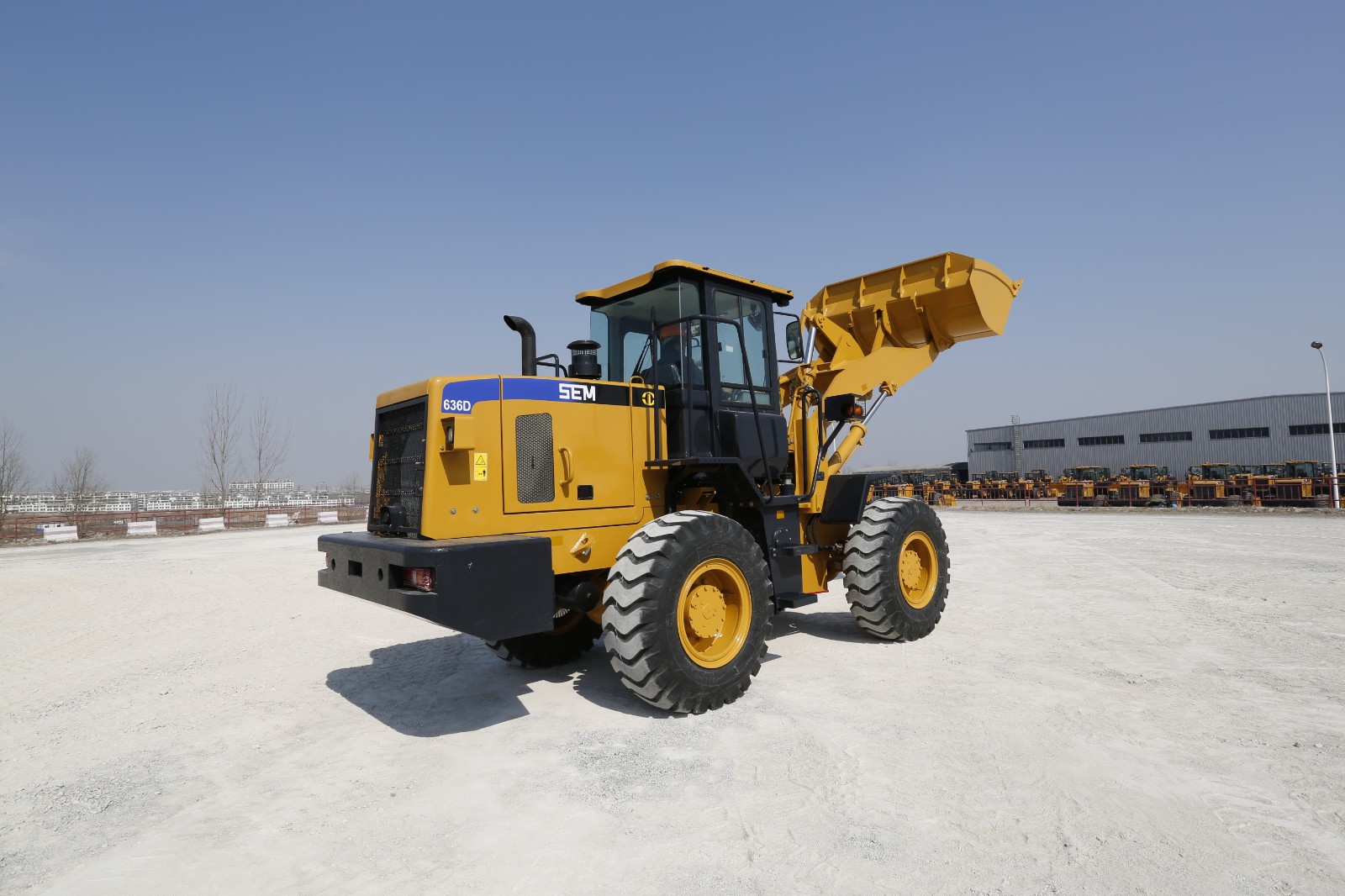

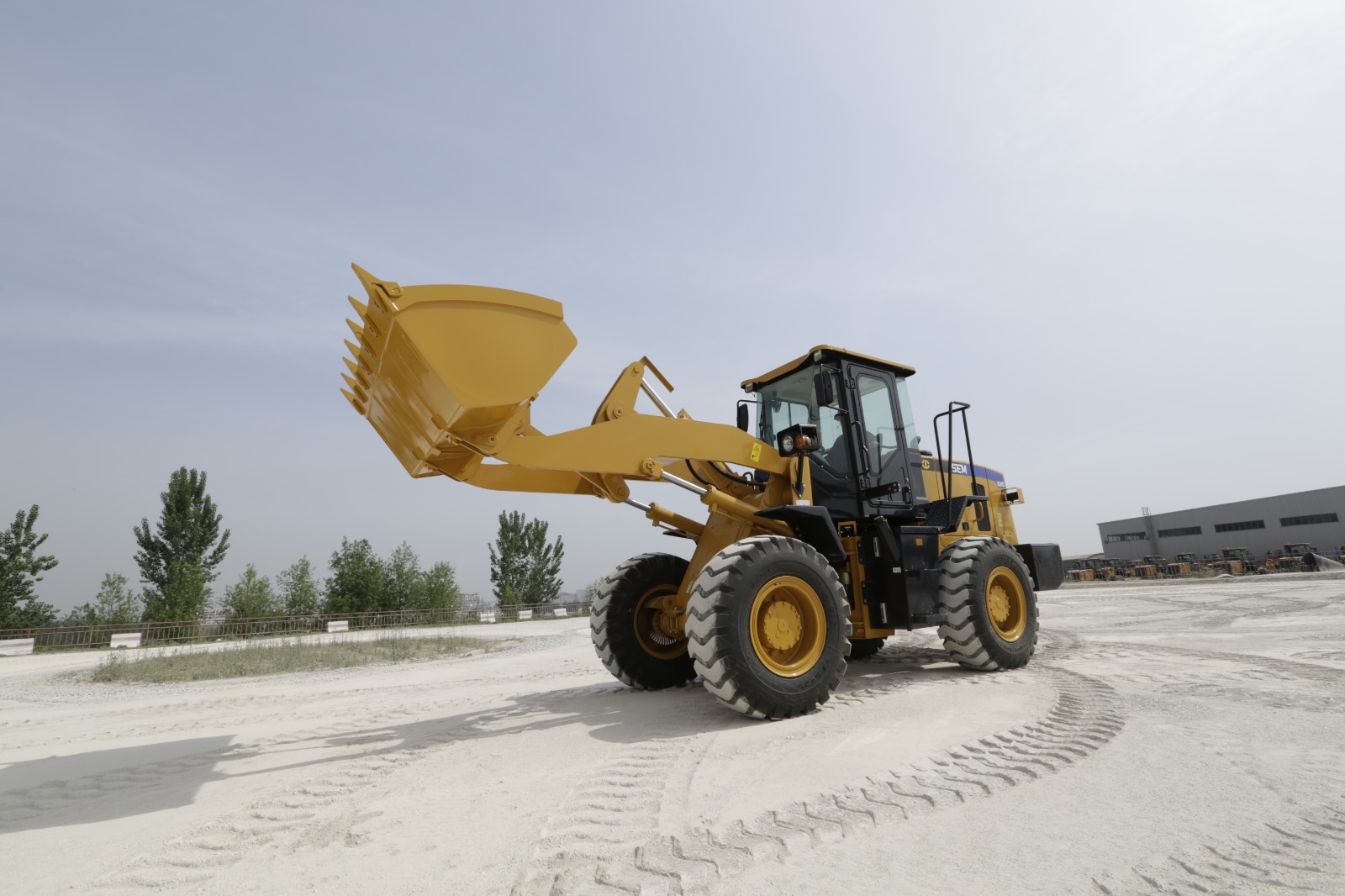

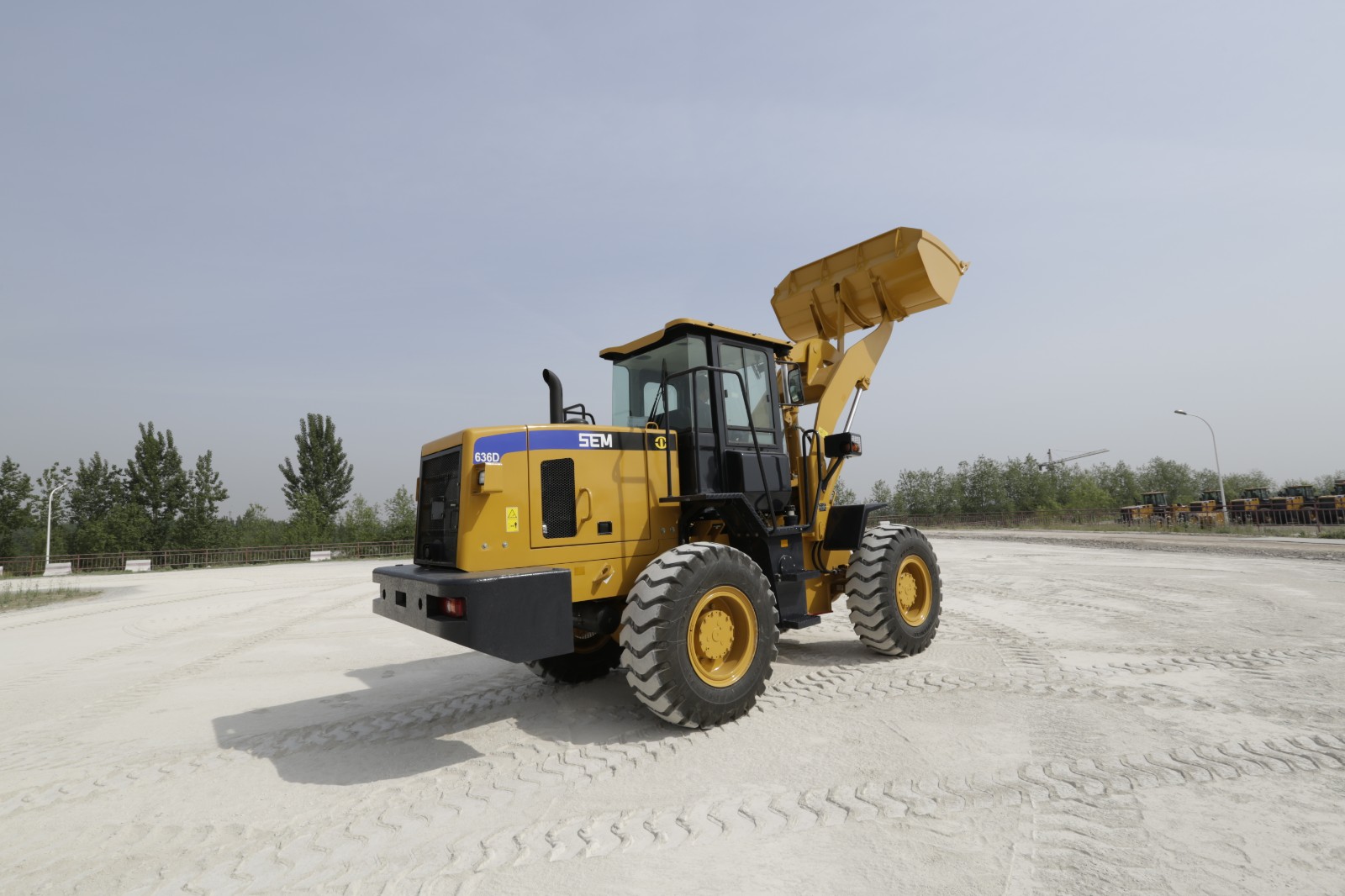

SEM636D is a wheel loader designed for productive material handling with a rated load of 3,000 kg and bucket capacities of 1.5-2.5 m³. Its 92 kW at 2,200 rpm powertrain, efficient hydraulics and durable structures support dependable operation in demanding applications.
SEM636D combines matched powertrain performance, efficient hydraulics and durable structures for productive material handling.
SEM636D combines matched powertrain and hydraulic performance to support efficient loading cycles and material movement.
Proven components, reinforced structures and application-focused protection support dependable SEM636D performance in demanding conditions.
Matched powertrain and hydraulic systems help SEM636D use power efficiently while supporting lower operating and maintenance costs.
The air cleaner is presented as supporting machine reliability in severe applications.
A single-pump flow-sharing system is used. The system is promoted for greater efficiency and breakout force. Machine speed and hydraulic performance are matched to improve efficiency.
The spacious operator station provides broad visibility. A patented MAC mount reduces noise and improves comfort. The suspension seat is adjustable.
The countershaft transmission uses upgraded core components to improve reliability. High first-gear rim pull and a faster second gear support efficient load-and-carry work. A clutch-cutoff selection switch supports stable, safe operation.
A high-efficiency cooling package is fitted. Shock-pad mounts improve reliability in severe applications.
Structures undergo Finite Element Analysis (FEA) and On Machine Stress Analysis (OMSA) to validate durability. Performance Series (PS) buckets improve loading capability.
System-pressure test ports are standard. A wide-opening side door in the engine hood improves service access. The torque converter is isolated from the transmission for easier servicing.
SEM636D supports loading, stockpiling and material-handling work across construction, quarry, port and industrial applications.
Select a specification group to review the machine data most relevant to your application.
| Model | Weichai: SEM 636D Weichai | Cummins: SEM 636D Cummins |
| Rated payload | 3,000 kg |
| Operating weight with standard bucket | Weichai: 10,133 kg | Cummins: 10,047 kg |
| Bucket capacity | 1.5-2.5 m³ |
| Breakout force | 113 kN |
| Transmission gears | Weichai: F4/R2 | Cummins: / |
| Torque converter type | Single stage, 3 elements |
| Maker and type | SEM TR100 |
| Rear oscillation | ±12° |
| Engine model | Weichai: WP6G125E22 | Cummins: Cummins 6BT5.9 |
| Rated power | 92 kW |
| Rated speed | 2,200 rpm |
| Displacement | 6.7 L |
| Emission | T2/Stage 2 |
| Implement system type | Gear pump |
| Hydraulic cycle time | 8.3 s |
| System pressure setting | 18 MPa |
| Raise | 4.6 s |
| Service brake | Weichai: Dry and caliper, air-to-oil control | Cummins: Caliper dry discs, air-over-oil actuation |
| Parking brake | Drum-type shoe brake |
| Fuel tank | 160 L |
| Engine lubricating oil | 17 L |
| Hydraulic system | 95 L |
| Transmission oil | 45 L |
| Size | 17.5-25 |
| Type | PR |
| Layer | 12 |
SEM636D combines proven standard systems with work-tool and application options for varied material-handling requirements.
