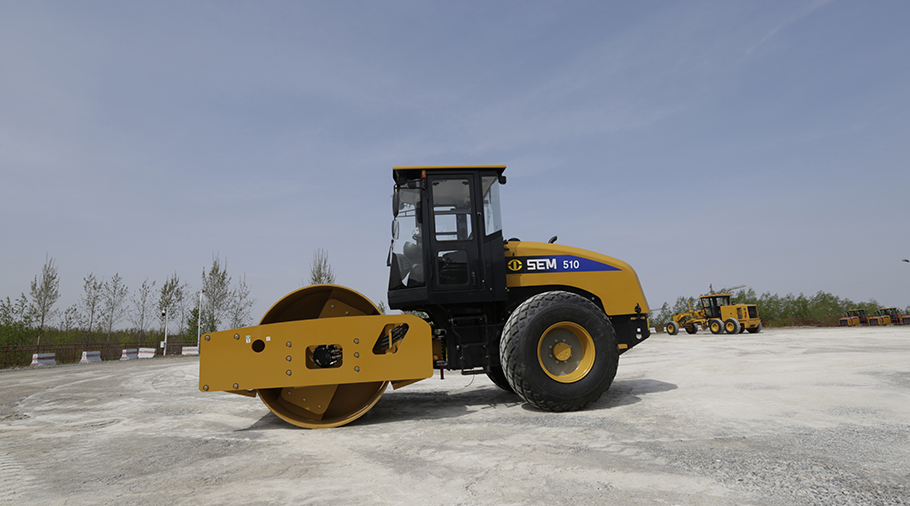

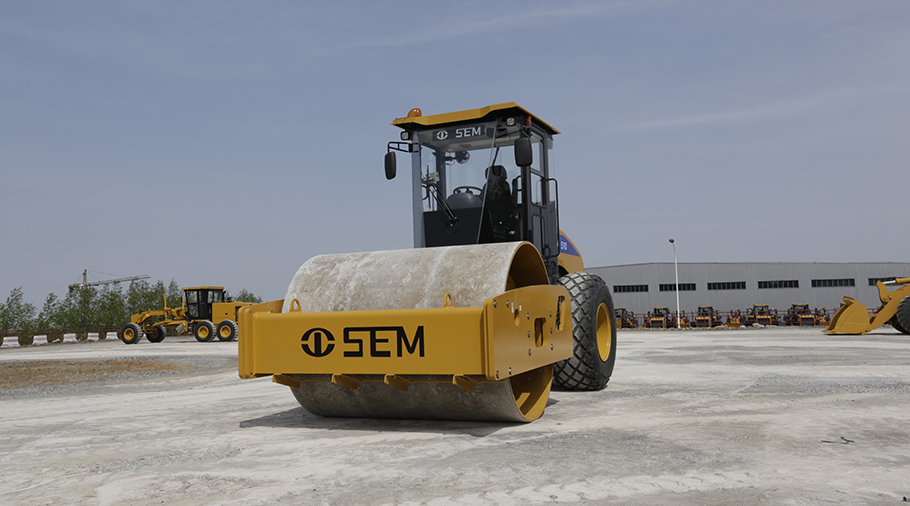

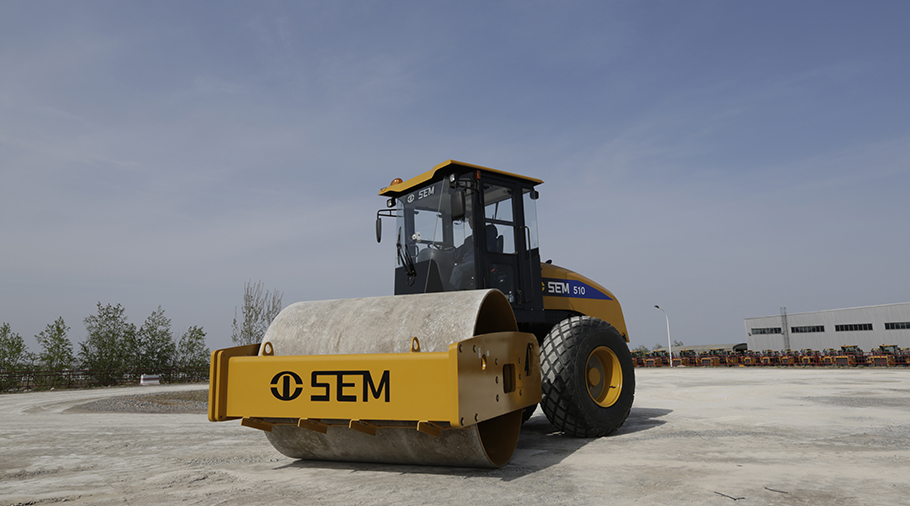

SEM510 is a 10-tonne soil compactor designed for reliable and productive work across road construction, infrastructure and site-development applications. Powered by 97.5 kW gross at 2,200 rpm, it combines a matched powertrain and vibratory system for consistent performance with 2,130 mm.
SEM510 combines dependable compaction performance, robust systems and straightforward operation for demanding infrastructure and site-development work.
Hydrostatic drive system with world class variable displacement piston pump and motors delivers leading in class reliability.
Dual amplitude and frequency vibration system enable the operator to achieve better compaction result.
Up to 45% grade ability allows the machine to work efficiently on slop and uneven terrains.
Weichai WP4 engine with turbo charger and ATAAC. High fuel efficiency.
Hydrostatics drive with rear axle and drum drive. High performance coupler. Heavy duty rear axle with limited slip differential.
Pod-style eccentric design. Dual amplitude and frequency with world class piston pump and motor.
Cat Product Link will support your business, and accurately convey information of the equipment to relevant personnel in a timely and effective manner for your better equipment management.
Improves efficiency by 20% vs. open center system. Reduces oil contamination, extends life of hydraulic system. Maintains higher system pressure with less energy loss.
Modular cooling package design. Up to 49°C ambient temperature cooling capacity.
Canopy standard, Cabin + A/C optional. Big room, superior front, side and rear visibility. SEM512/510 is hydrostatic compactor. The operation system is very simple, it just has two control levers, one for throttle control, another one is for forward/backward and brake control.
SEM510 is suited to infrastructure, public works and site-development applications where reliable soil compaction is essential.
Select a specification group to review the machine data most relevant to your application.
| Model | SEM510 |
| Engine Model | WP4G130E22 |
| Emission | China StageII |
| Std Rated Power-Gross | 97.5kW |
| Rated Speed | 2,200r/min |
| Composite Work Cycle Fuel Consumption (l/hour) | 560/1,400-1,600N.m/rpm |
| Ambient Capability-HA Sea Level | 49Deg C |
| Ambient Capability-Cold Weather | -10Deg C |
| Machine Mass w/Std Config | 10,000+3%kg |
| Weight at Drum w/Std Config | 5,900+3%kg |
| Weight on Rear Axle | 4,100kg |
| Static Linear Load | 271N/cm |
| Max. Grade Ability w/o vibbration | 45% |
| Articulated Angle | 33±1° |
| Turning Outer Radius | 5,990mm |
| Compaction Width | 2,130mm |
| Lo Range | 0 to 5.5km/h |
| Hi Range | 0 to 12km/h |
SEM510 combines a practical standard configuration with application-focused options for demanding operating conditions.
Compare adjacent models in the SEM soil compactor range to select the right operating weight and compaction performance.
Designed for demanding compaction applications, the SEM512 combines a reliable hydrostatic drive system, dual-amplitude vibration and up to 45% gradeability for productive operation across slopes and uneven terrain.
View SEM 512
SEM518 is an 18-tonne soil compactor designed for reliable and productive work across road construction, infrastructure and site-development applications. Powered by WP6G175E20; 129 kW at 2,000 rpm, it combines a matched powertrain and vibratory system for consistent performance with 2,130 mm wide; 1,600 mm diameter; 40 mm thick.
